Dual Clam Shell with Articulating Arm and Small Plate

$330.00

Item Number: 7160-0420

Description

Mount any device securely to the forklift overhead guard legs.

Shipping — Approximate Lead Time Given at Order Entry
URL copied to clipboard
View Full Line Catalog
  • Weight

    7.1 lbs / 3.22 kg

  • Height

    4 in / 10.16 cm

  • Width

    7 in / 17.78 cm

  • Depth

    13 in / 33.02 cm

Features:

Placement

  • Designed to attach to rectangular forklift support braces ranging from 1.5" to 2.5" in width.

Tilt

  • Clevis: Tilts up to 90° forward.
  • Clam Shell: Tilts up to 160°.

Swivel

  • Motion Attachment: Rotates 360°.
  • Entire Arm: Rotates 360°.

Clam Shell Features

  • Compatible with hole patterns: AMPS, NEC, 75mm VESA, and Gamber-Johnson (2" x 4.09").
  • Both the entire arm and Motion Attachment can rotate 360°.
  • Arm extends for easier access to equipment and can be tightened to lock in place.
  • Tilt Options:
           90° forward tilt for tablet mounting.
           26° aft tilt with a positive stop at 26°.
  • Riveted design ensures smooth tilt movement.
  • Adjustable lever allows tilt adjustment; re-tighten to secure position.
  • Secondary bolt available for locking clevis in place.
  • Constructed from heavy gauge steel for durability in rugged environments.
  • Black powder coat finish for enhanced corrosion resistance.

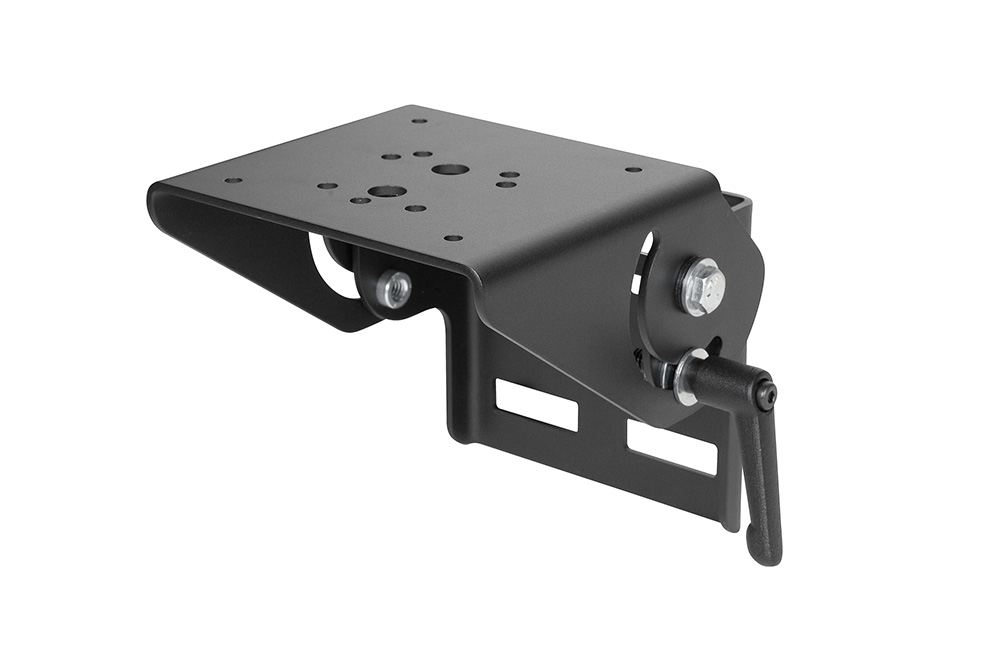

Small Plate Features

  • Compatible with hole patterns: AMPS, NEC, and 75mm VESA.
  • Offers 160° tilt capability, adjustable via an adjustable lever.
  • Secondary bolt provided to lock the Clam Shell in a fixed position.

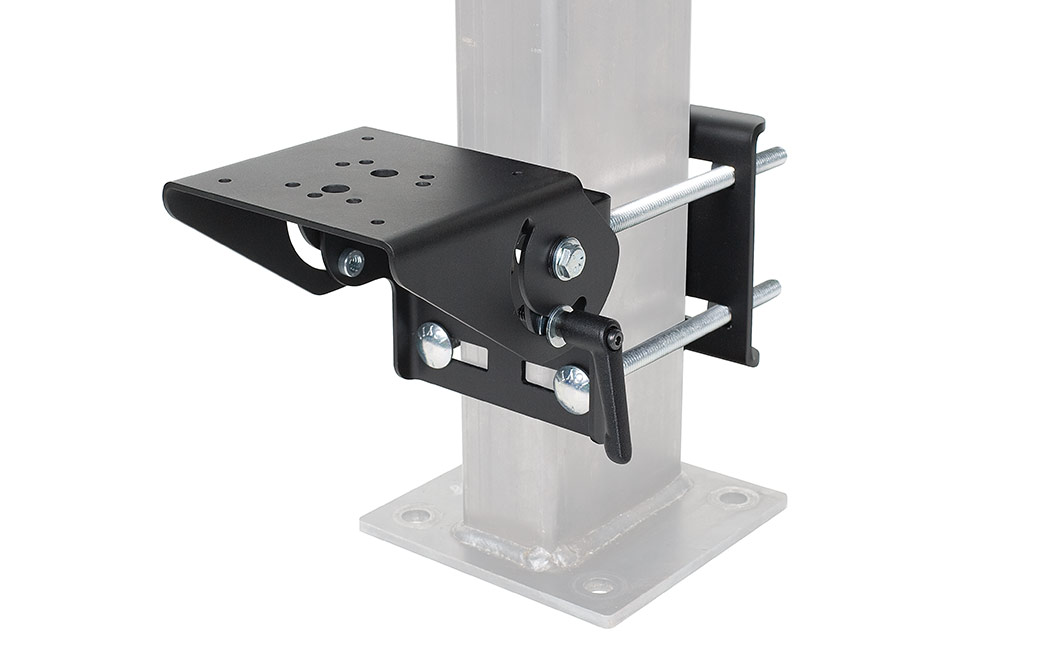

  • Plate design sandwiches the overhead guard leg for precise height adjustment.
  • Built with heavy gauge steel for durability in harsh environments.
  • Black powder coat finish for maximum protection against corrosion.

Purchase this product through a Reseller in your area.

  • Warranty:

    • Limited Lifetime Warranty
  • Sub Type 1:

    • Guard Leg
  • Sub Type 2:

    • Clam Shell
    • Rectangular/Square
    • Roll Form
  • Sub Type 3:

    • Small Back Plate
  • Industry:

    • Material Handling
  • Placement:

    • Attaches to rectangular forklift support braces 1.5" to 2.5" wide
  • Brand:

    • Gamber-Johnson
  • Notes:

    • Tilt: Clevis up to 90 degree fore
    • Clam Shells up to 160 degree
    • Swivel: Motion Attachment - 360 degree
    • Entire arm - 360 degree
