Panasonic Toughpad FZ-G1 THIN Cradle (No electronics)

$408.00

Item Number: 7160-0759-00

Description

This Panasonic Toughpad FZ-G1 cradle (no electronics) is the perfect companion for the FZ-G1 tablet when you do not require port replication or any additional accessories for the tablet. This cradle features a keyed lock and a VESA 75mm mounting pattern.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide Testing Summary
View Full Line Catalog

  • Weight

    2.4 lbs. / 1.08 kg

  • Height

    9.33" / 23.7 cm

  • Width

    11.22" / 28.5 cm

  • Depth

    2.56" / 6.5 cm

Features:

  • Compatible with the Panasonic Toughpad FZ-G1 tablet computer with small bumper guards
  • Cradle is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
  • Access to all tablet control buttons and ports while tablet is docked
  • Easy docking and release, Insert computer into the cradle, push top of cradle down and engage lock to dock computer
  • Keyed lock for theft deterrence VESA 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability

Kit Includes:

  • Panasonic FZ-G1 Cradle
  • Mounting Hardware
  • Installation Instructions

Purchase this product through a Reseller in your area.

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Device OEM:

    • Panasonic

  • Power Supply:

    Power adapter is not included, please use one of the following:

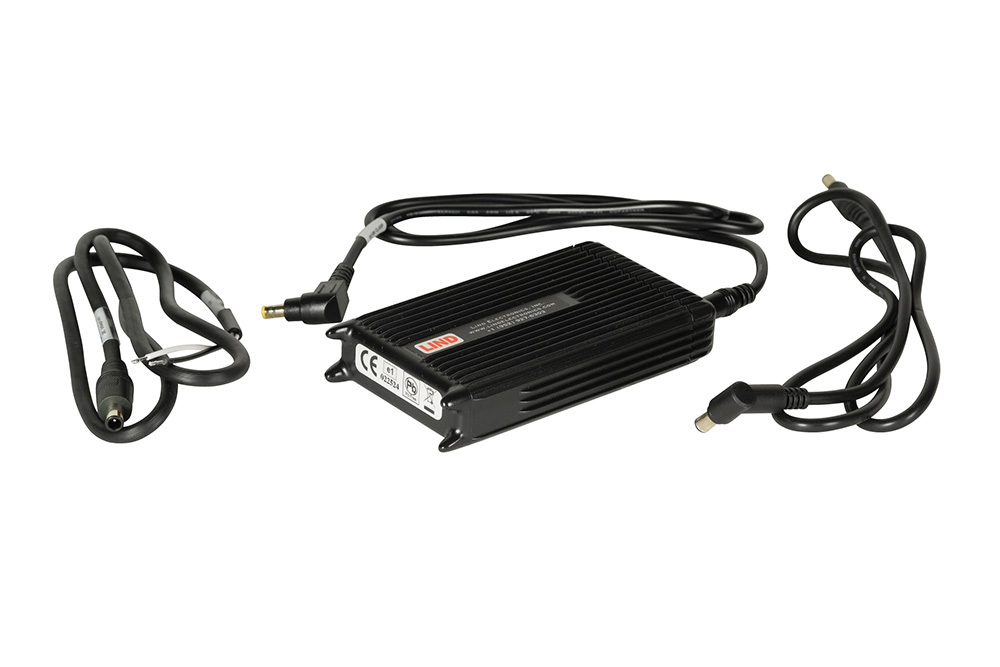

    • LIND 11-16V Auto Power Adapter with Cigarette Lighter connector (7300-0459)
    • LIND 11-16V Auto Power Adapter with Bare Wire Lead (7300-0460)
    • LIND 12-32V Material Handling Isolated Power Adapter (7300-0464)
    • LIND 20-60V Material Handling Isolated Power Adapter (7300-0465)
    • LIND 72-110V Material Handling Isolated Power Adapter (7300-0417)

  • Testing Specifications:

    • TOUGHBOOK Certified
    • MIL-STD 810G Shock/Vibration Tested
    • MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational)
    • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
    • RoHS, FCC, CE, C-TICK, UKCA
    • SAE J1455 Shock Crash Hazard Test

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • NA

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Cradle
