Weight
26.35 lbs. / 11.95 kg
-
Height
10.88" / 27.64 cm
-
Width
11.83" / 30.05 cm
-
Depth
24.75" / 62.87 cm
Features:
Horizontal, low profile section:
- Has a mounting area of 11.5" (29.2 cm) long to hold 11.5" of devices.
- Designed to house full-sized devices and accessories.
- Has additional side mounting area of 2" (5.1 cm) that will accommodate the 2-inch wide and 1.5-inch deep pocket (item no. 7160-0924), 2-inch faceplate for switches, power ports or a smaller device.
Vertical, angled sections:
- Accommodates 1 to 2 full-sized devices or faceplates (5" / 12.7 cm of mounting space)
- Two 12 volt plug knock-outs, located on top of the passenger side and 2 knockouts for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension
Other features:

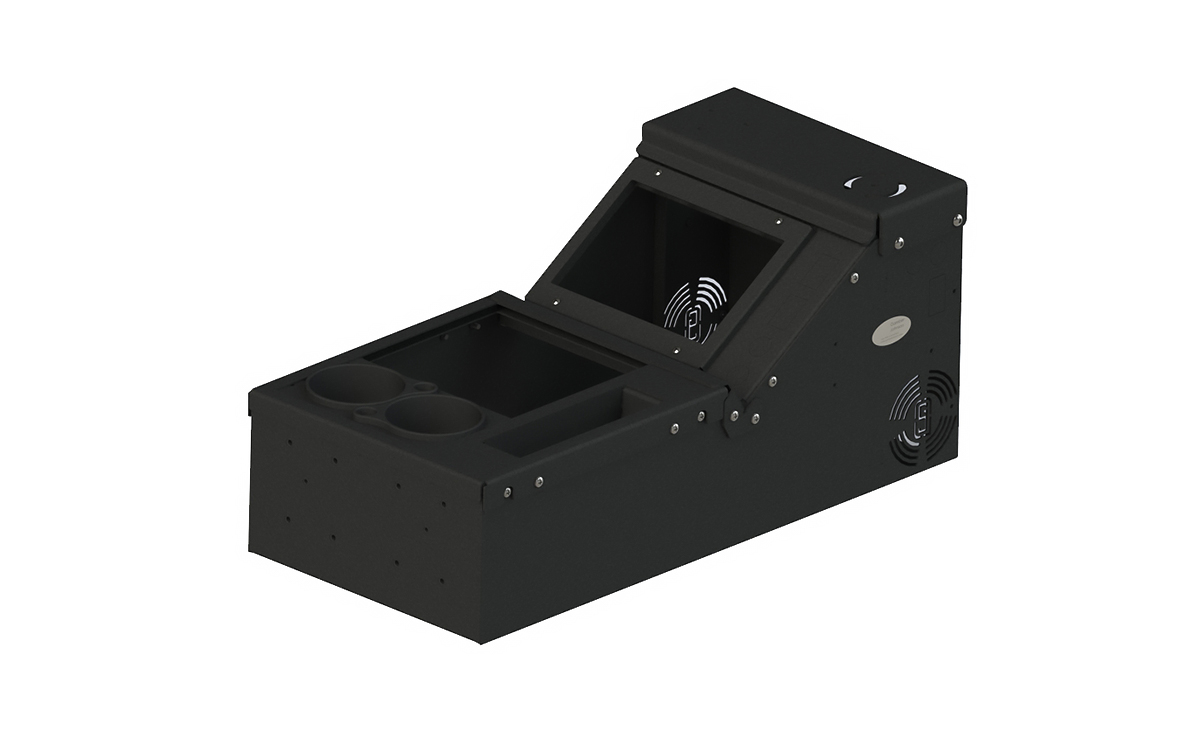

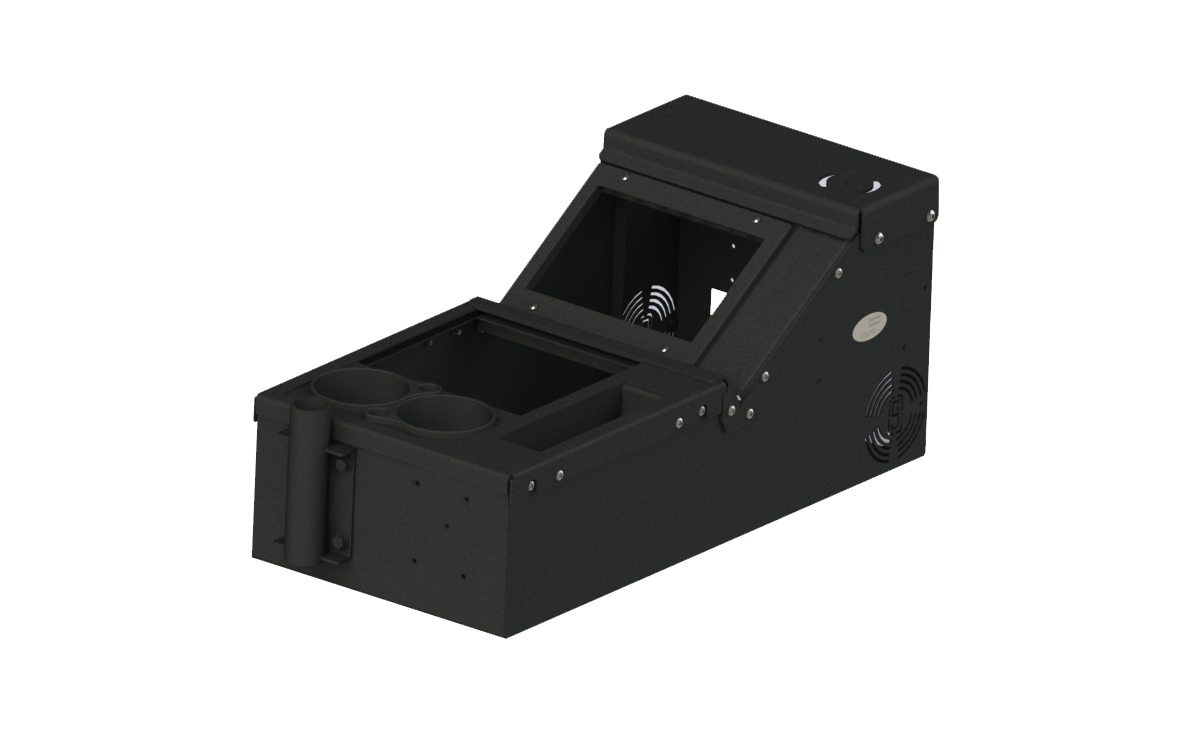

- Low profile, universal console with sloped front mounting area.
- Designed to work with top plate / tunnel plate and leg kits.
- Two 12 volt plug knock-outs, located on passenger side wall of console box and one knock-out for switches, dual USB power ports, battery. Voltage display, data / mic jack or USB / AUX input module extension
- PEMss for mounting mic clip (item no.7120-0723) on both sides.
- Side vented openings for air flow or mounting a speaker inside the console box.

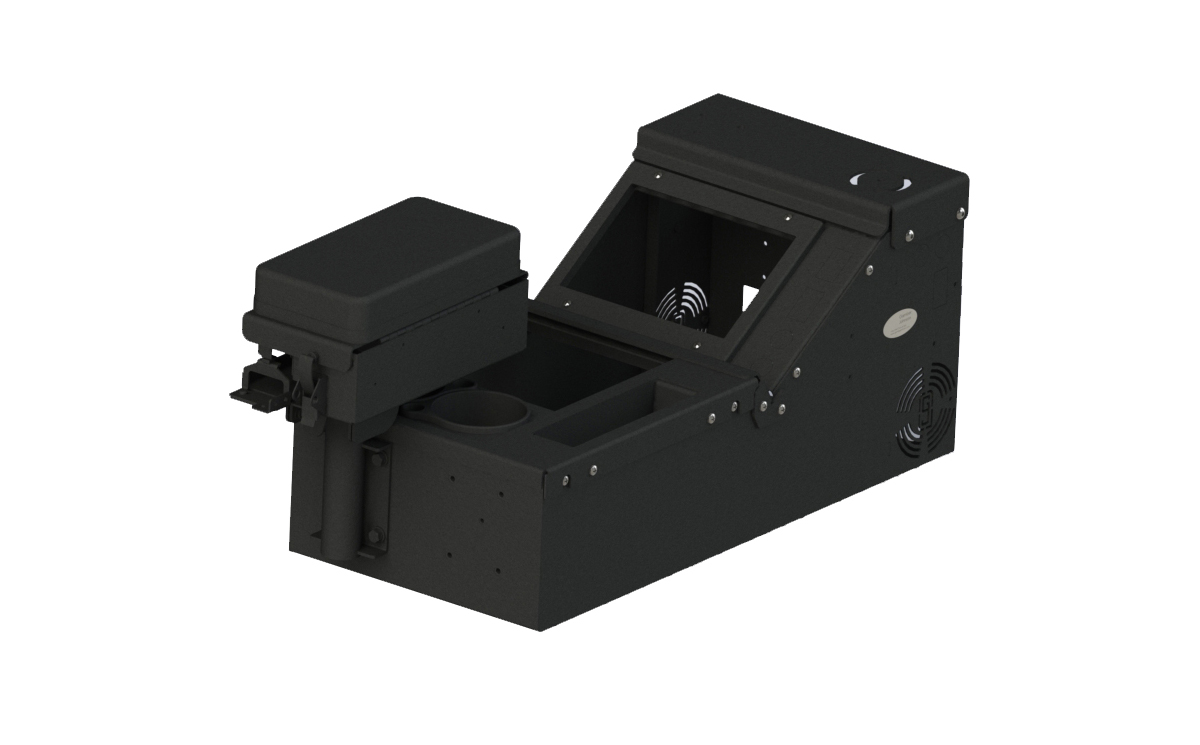

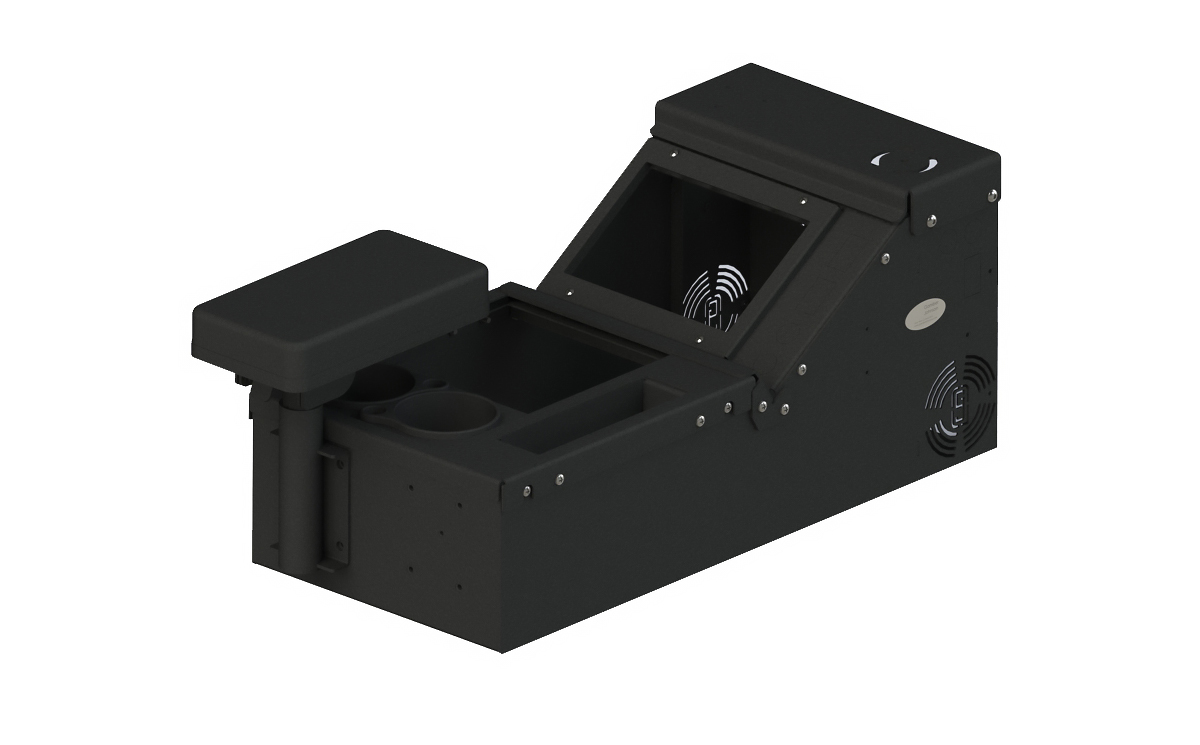

- PEMs on back of console box for mounting an external cup holder (item no. 7160-0847) and armrest (item no. 7160-0429) or printer armrest (item no. 7160-0430).
- Front plate of console (underneath dash area) has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes.
- Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access.
- Fully welded construction for long term product life span.
- Comes with 3 faceplates and 3 filler panels.
- Box ships fully assembled (except for accessories).
Vehicle Compatibility:
- UNIVERSAL
Purchase this product through a Reseller in your area.
