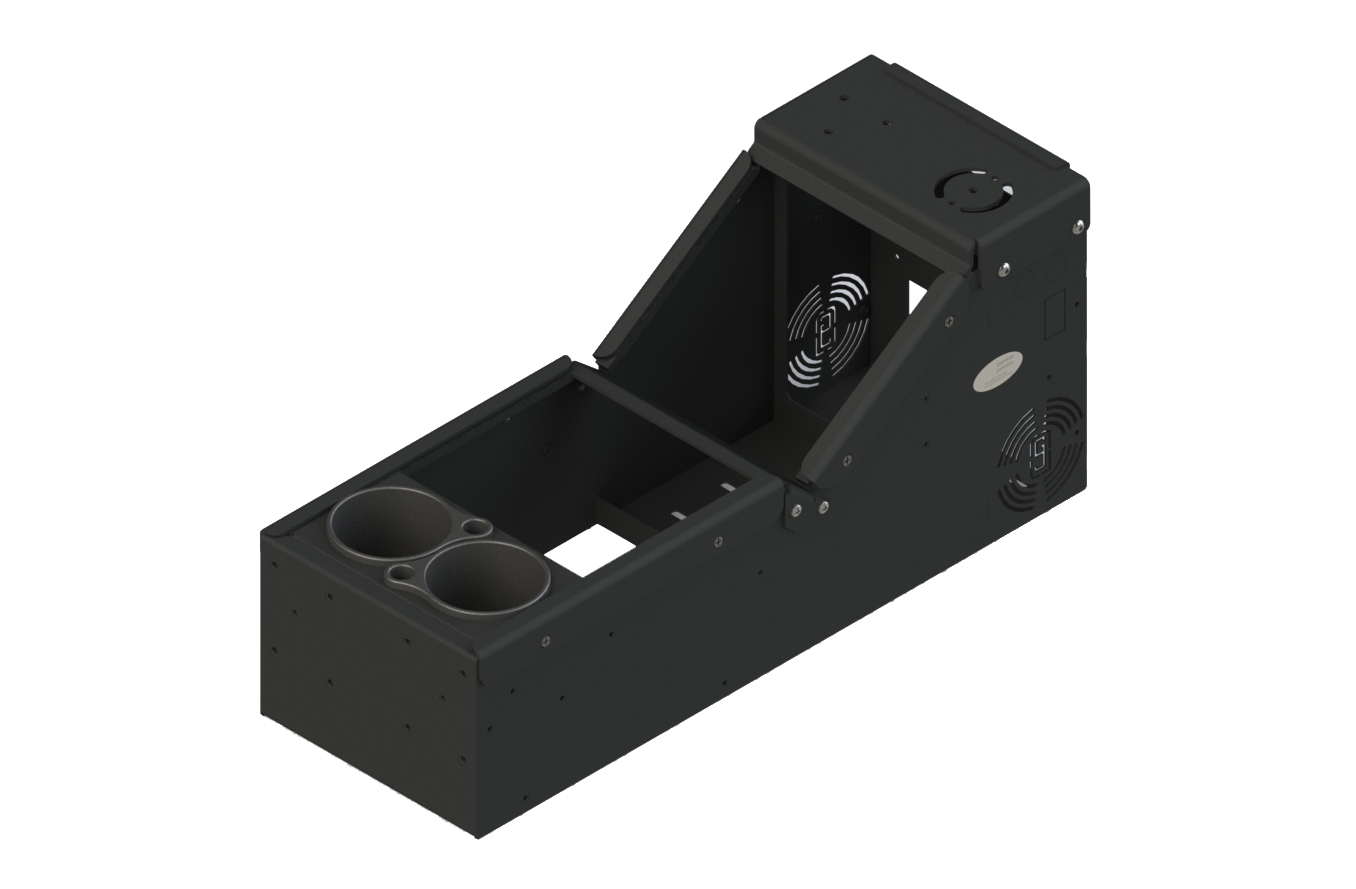

Universal Sloped Front Console Box

$540.00

Item Number: 7160-0896

Description

Items such as control heads, radios, docking stations, motion attachments, computers, toggle switch plates, and locking pocket shown in photos are not included.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Installation Guide
View Full Line Catalog

  • Weight

    19.50 lbs / 8.85 kg

  • Height

    11.00 in / 27.90 cm

  • Width

    8.99 in / 22.80 cm

  • Depth

    24.75 in / 62.90 cm

Features:

  • Low profile, universal console with sloped front mounting area.
  • Designed to work with top/tunnel plate and leg kits.
  • Fully welded construction for long term product life span.
  • Front plate of console (underneath dash) has placement for a power distribution block or Lind shut-down timer using pre-configured mounted holes.
  • Mounting for armrest - both on back and sides of console box.
  • Mounting for the side document pocket (item no. 7160-0464).
  • Mounting on both sides of console box for standard mic clips.
  • Box ships fully assembled.
  • Includes 3 faceplates and 3 filler panels that require assembly.
  • Note: Top plate is needed. Mounts to top plate item no. 7160-0085 or 7160-0086.

Vehicle Compatibility:

  • UNIVERSAL

Purchase this product through a Reseller in your area.

  • Warranty:

    • Limited Lifetime Warranty

  • Mounting Space:

    • Horizontal Section accommodates 11.5" (29.21 cm) of mounting space
    • Vertical Section accommodates 7.5" (19.05 cm) of mounting space

  • Industry:

    • Fire/Rescue
    • Public Safety
    • Utility

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Console System

  • Sub Type 2:

    • Console Box

  • Sub Type 3:

    • Standard

  • Notes:

    Vertical, angled section:

    • Has a mounting space of 7.5" (19.05 cm) to accommodate 1 to 2 full-sized devices.
    • Two 12 volt plug knockouts located on passenger side.
    • Knock out for the USB/AUX input module (Item no. 16648) or dual USB power port (item no. 15371) located on passenger side.
    • Opening on sides of console boxes for audio output devices to be mounted behind.
    • Computer can be center mounted either off-set towards the passenger on the "smiley face pattern" or on the 3-bolt pattern closer to the driver for easy articulation access.

    Horizontal, low profile section:

    • Has a consistent mounting space height of 11.5" (29.21 cm).
    • Designed to house full-sized devices and accessories.

    Compatibility:

    Works with the following leg kits:

    • Item no. 7160-0555: Ford F-150 (2015+), F-250 - F-550 (2017+), Expedition (2018)
    • Item no. 7160-0422: Dodge Ram Truck
