Firehawk FT-810 Tablet Charging Cradle

$153.00

Item Number: 7160-1424-10

Description

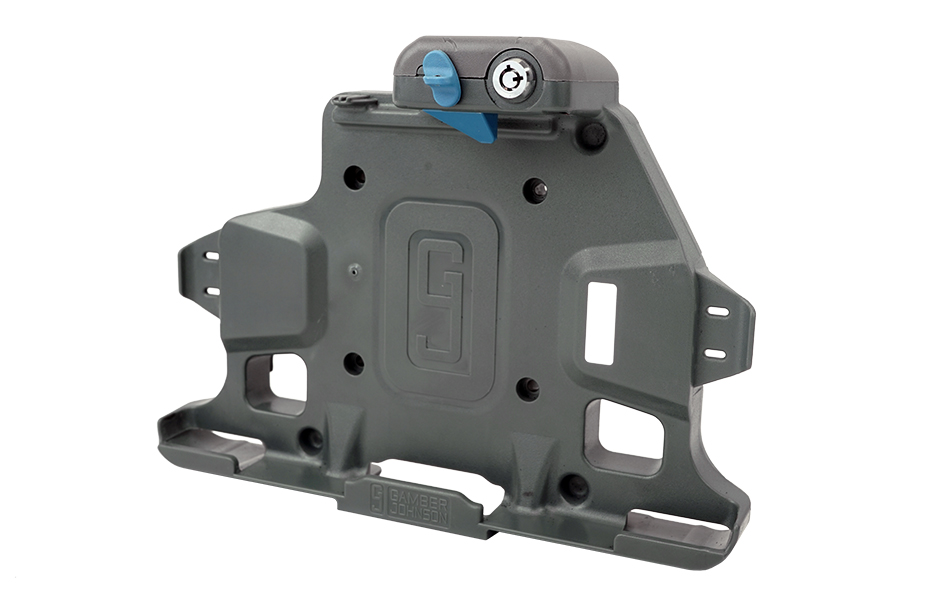

This Charging Cradle for the Firehawk FT-810 tablet provides a pogo pin charging connector designed to charge the FT-810 tablet all day long. This charging cradle also features an easy one-hand cradle/release latching mechanism with a keyed lock for additional security. Mount this cradle in a vehicle or on a wall using the VESA 75 mounting pattern and a motion attachment from Gamber-Johnson. Contact your sales representative or call 1-800-456-6868 for pricing.

URL copied to clipboard
View Full Line Catalog
  • Weight

    0.77 lbs / 0.35 kg

  • Height

    7.12 in / 18.08 cm

  • Width

    9.66 in / 24.54 cm

  • Depth

    2.5 in / 6.44 cm

Features:

  • Designed for the Firehawk FT-810 tablet computer
  • Kit includes Firehawk FT-810 Charging Cradle (Item No. 7160-1424-10) and 12-24Vdc , 5V with Bare Wire Lead (Item No. 19161)
    12-24V power input range to support a wide range of mobile applications
  • 5V, 3A Max of output
  • Simple, one-handed operation:
    • Insert bottom of Firehawk tablet into the docking station and push top of the tablet in until the lock engages
    • Push latch button up with your thumb then remove the tablet from the docking station
  • Access to all control buttons and camera while docked
  • USB-C charging port with integrated cable restraint (to connect to power supply), includes USB-C charging cable with bare wire end
  • VESA 75mm mounting pattern, compatible with Zirkona mounting products
  • Composite design for reduced overall weight

Kit Includes:

  • Firehawk FT-810 Charging Cradle
  • Power adapter with wiring harness
  • Installation Guide
  • Mounting Hardware

Purchase this product through a Reseller in your area.

  • Warranty:

    • 3-year Limited Lifetime Warranty
  • Sub Type 1:

    • Dock
  • Device OEM:

    • Universal/Other
  • Antenna Pass-through:

    • No RF
  • Port Replicators:

    • USB-C Power Input
  • Power Supply:

    • Yes, power supply and wiring harness
  • Testing Specifications:

    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • MIL-STD 810G Shock/Vibration Tested
    • RoHS, FCC, CE
  • Device Type:

    • Tablet
  • Industry:

    • Logistics
    • Material Handling
    • Utility
  • Brand:

    • Gamber-Johnson
  • Notes:

    Compatibility:

    • Compatible Firehawk FT-810 tablet computer
