Zebra ET51/56 10″ SLIM Charging Cradle

$621.00

Item Number: 7160-1576-10

Description

Gamber-Johnson’s Zebra ET51/56 Tablet Charging Cradle will keep your ET51/56 computer charged all day long. The front-facing release latch button makes one-handed cradle/release very easy and this cradle will attach to most Gamber-Johnson motion attachments with the VESA 75mm mounting pattern. Now shipping.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    1.8 lbs / 0.82 kg

  • Height

    10.67 in / 27.1 cm

  • Width

    11.72 in / 29.77 cm

  • Depth

    3.06 in / 7.77 cm

Features:

  • Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
  • This cradle does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the cradle
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • Guide pins prevent damage to the charging pins when cradling the tablet
  • Powered POGO pins transfer power to the  Zebra tablet (requires external power adapter)
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of cradle
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 10" SLIM Tablet Charging Cradle
  • Mounting hardware
  • Installation guide

Purchase this product through a Reseller in your area.

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Device OEM:

    • Zebra

  • Power Supply:

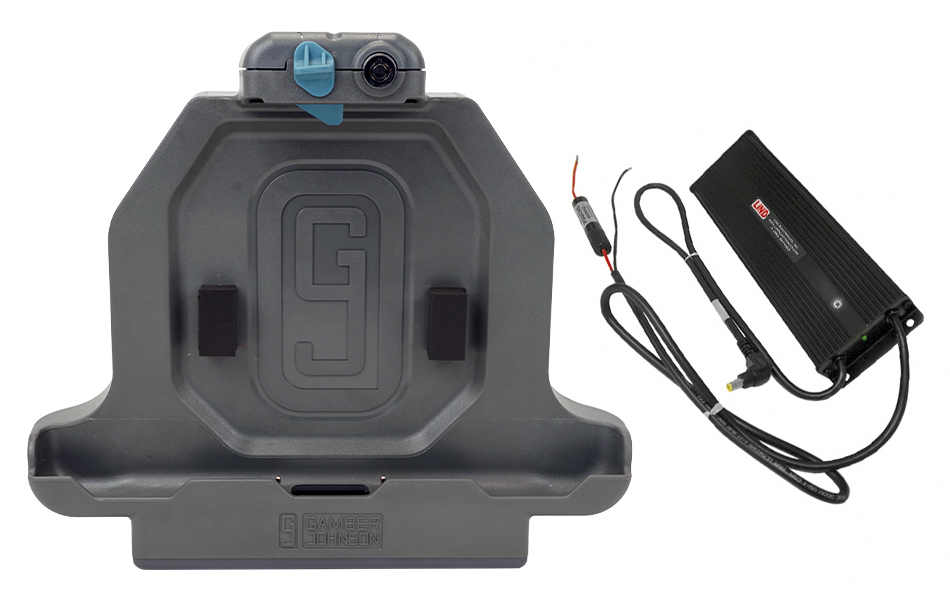

    NOT included. Use power supplies:

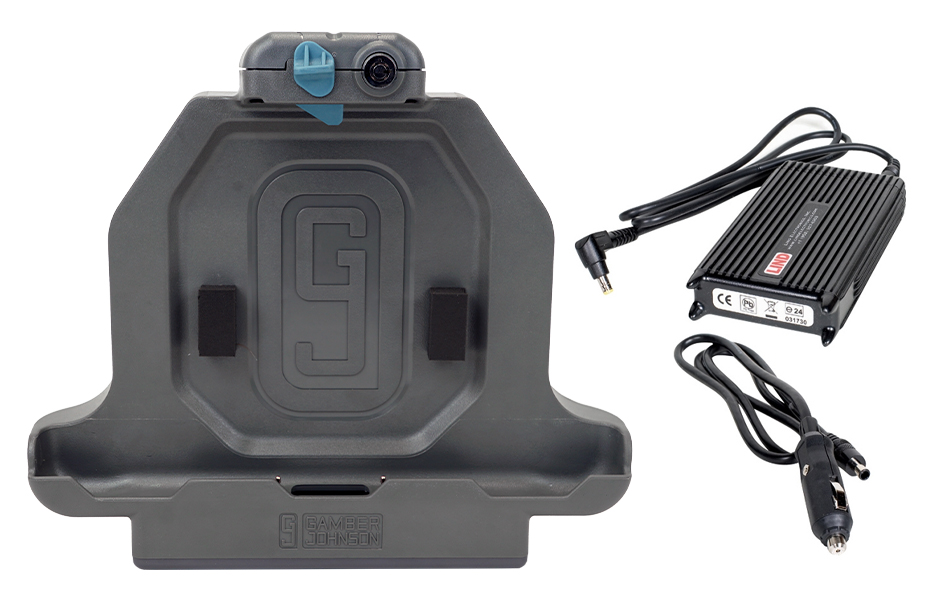

    • LIND 11-16V Auto power adapter (7300-0415)
    • LIND 12-32V Isolated Power Adapter (7300-0466)
    • LIND 20-60V Isolated Power Adapter (7300-0467)
    • LIND 72-110V Isolated Power Adapter (7300-0418)

  • Testing Specifications:

    • MIL-STD 810G Shock/Vibration Tested
    • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (storage/operational)
    • SAE J1455 Crash Tested
    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • RoHS, FCC, CE Certifications

  • Port Replicators:

    • Power Input 12VDC through pogo pin connector

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Material Handling
    • Public Safety
    • Utility

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Cradle

  • Notes:

    Compatibility:

    • Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
