Dell Rugged Gen 2 Laptop Vehicle Docking Station, Full Port, No RF

$1,315.00

Item Number: 7160-2231-00

Description

Built for the next generation of rugged mobility, the Dell Rugged Gen 2 Laptop Docking Station delivers fast, intuitive docking and expanded connectivity in a compact footprint. Designed for the Dell Pro Rugged 14 (PR514260) and future models, its innovative auto-docking system enables true one-handed operation—just align, lower, and click securely into place. Upgraded port replication, including easy-access front USB-A and USB-C ports, keeps critical connections close at hand, while available QUAD RF antenna pass-through supports WWAN, GPS, WLAN, and MIMO connectivity. With its space-saving, lightweight design and rugged construction, it’s engineered to keep mobile teams connected, productive, and ready for whatever the workday brings.

Add to Quote
Shipping — Available for Pre-Order
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide Dimensional Drawings
View Full Line Catalog

  • Weight

    3 lbs / 1.36 kg

  • Height

    2.37 in / 6.02 cm

  • Width

    11.25 in / 28.58 cm

  • Depth

    10.08 in / 25.6 cm

Features:

  • Auto-docking design for true one-handed operation. Simply align the device with the front hooks and lower it into position. The rear docking mechanism automatically engages, guiding the device securely into the dock with an audible click.
  • Improved ergonomic release mechanism enables fast, intuitive, low-effort undocking—ideal for frequent in-and-out use.
  • Compatible with the Dell Pro Rugged 14 (PR514260), with easily adjustable front hooks designed to support future devices built on the Gen 2 docking platform
  • Compact, smooth, and lightweight design minimizes cabin mounting space while maximizing user comfort—without compromising ruggedness or durability.
  • Casted Zinc Alloy front hooks provide enhanced strength and durability.
  • Rear-facing ports with integrated cable routing and tie-offs keep connections secure, reduce cable strain, and minimize required mounting space.
  • Front and side facing ports provide flexibility with accessing data and attaching accessories.
  • Front indicator light displays power and docking status
  • Keyed lock provides added theft deterrence.
  • VESA 75 mm insert mounting pattern for flexible installation options
  • 1/4"-20 Hex Head Grade 5 black zinc-coated mounting hardware included. Recommended installation torque: 50-75 in-lbs.

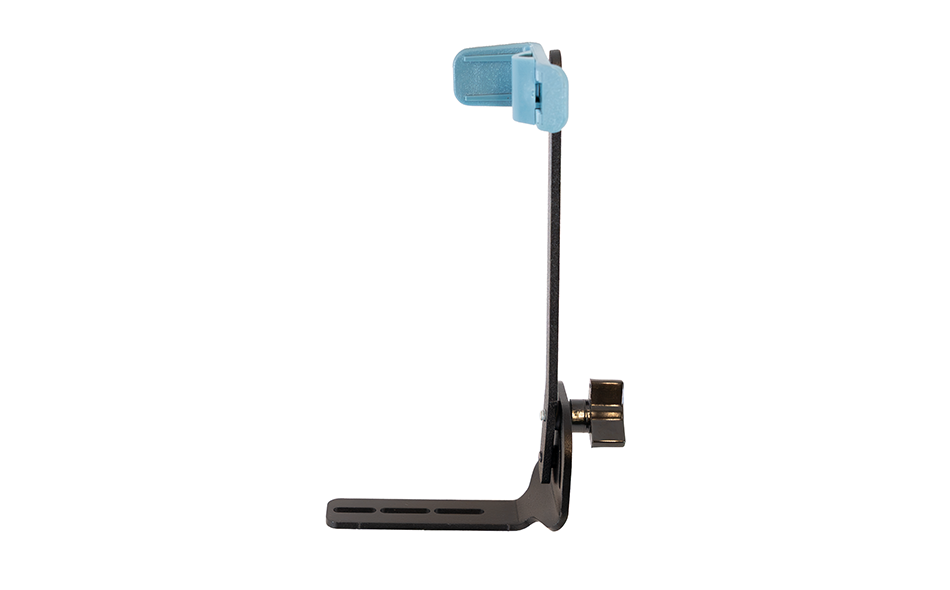

  • Optional screen support provides additional device stability


Purchase this product through a Reseller in your area.

  • Model:

    • 14 Pro Rugged Laptop (PR514260)

  • Device OEM:

    • Dell

  • Warranty:

    • 3 Year Limited Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Power Supply:

    • Not included
    • Recommended power adapters:
      • LIND 120W Bare Wire Automotive Power Adapter (7300-0714)
      • LIND 120W DC Plug Automotive Power Adapter (7300-0713)
      • LIND 12 – 32 VDC 90W Isolated Power Supply (7300-0305)
      • LIND 20 – 60 VDC 90W Isolated Power Supply (7300-0306)
      • LIND 72 – 110 VDC 90W Isolated Power Supply (7300-0622)
      • 130W AC Power Supply (7300-0752)

  • Testing Specifications:

    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • MIL-STD 810H Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational)
    • MIL-STD 810H Shock/Vibration Tested
    • RoHS, REACH, FCC, CE
    • SAE J1455 Shock Crash Hazard Test


  • Port Replicators:

    • (1) Serial RS232 DB9 – 1A 5 Vdc
    • (3) USB-A 3.2 5gbps 1.5A 5 Vdc
    • (1) USB-C 3.2 5gbps 1.5A 5 Vdc
    • (1) Ethernet RJ45 1gbps 1000/100/10
    • (1) HDMI
    • (1) USB-A 3.2 5gbps 1.5A 5 Vdc (front, side)
    • (1) USB-A 3.2 5gbps 0.5A 5 Vdc (front)
    • (1) USB-C 2.0 480mbps 0.5A 5 Vdc (front)
    • (1) Power Input 7.4mm Barrel Plug 19.5V and 120W


  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Laptop

  • Industry:

    • Business
    • Field Service
    • Fire/Rescue
    • Intermodal
    • Logistics
    • Material Handling
    • Military
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock

  • Notes:

    Note: As of 2025, Gamber-Johnson recommends using 120W automotive power adapters to support optimal performance for newer devices and across all user applications. Customers with existing deployments using legacy 90W automotive adapters may continue to use them; however, depending on the device configuration and workload – including graphics, AI use and hot swappable batteries – performance limitations may occur. To ensure reliable operation and maximize device performance, upgrading to a 120W automotive adapter is strongly recommended.


    Isolated power supplies will typically provide up to 90W output. Please refer to the specifications of the specific power supply being used to confirm its output capability. For applications with higher power requirements, or if power-related performance issues are experienced, a step-down isolator used in conjunction with a 120W automotive power adapter may be required. Please contact us if you need assistance determining the appropriate power solution for your application.
