2004-2014 Ford F-150 Pedestal System Kit

Name: 2004-2014 Ford F-150 Pedestal System Kit
SKU: 7170-0135
Availability: OutOfStock

$942.00

Item Number: 7170-0135

Description

Shipping — Approximate Lead Time Given at Order Entry

URL copied to clipboard

Kit Includes:

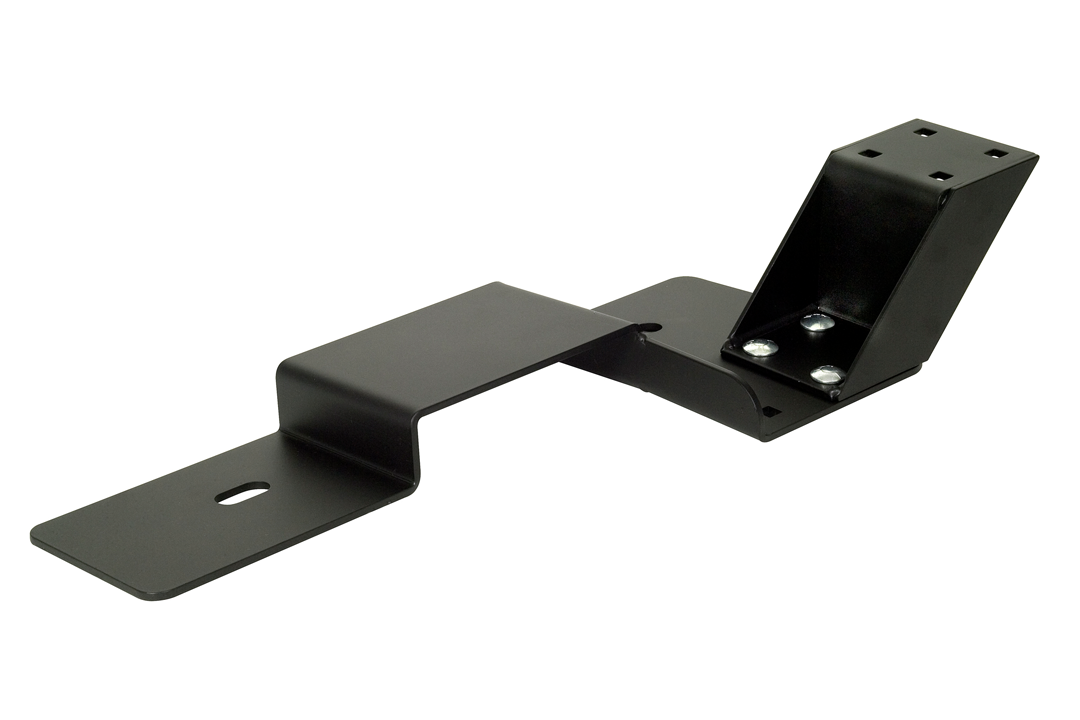

Vehicle Base (DS-124): Vehicle Base attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
Lower Tube (DS-LOWER-9): The Lower Tube provides vertical clearance over the center console or the seat.
Upper Pole (7160-0178): Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
9" Locking Swing Arm - Mongoose (7160-0220): Locking Slide Arm can rotate around 360° with locking points every 15Â°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
Support Brace (7160-0230): Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.
