2014+ Ford Transit Connect Pedestal System Kit

Name: 2014+ Ford Transit Connect Pedestal System Kit
SKU: 7170-0238
Availability: OutOfStock

$859.00

Item Number: 7170-0238

Description

2014+ Ford Transit Connect Pedestal System Kit is designed with heavy gauge steel for long-term durability. The pole mount and locking slide arm lend easy access to your system, and the support brace reduces mounting system vibration in rugged driving conditions. Motion attachment works with VESA 75mm, Gamber-Johnson 2×4, NEC or AMPS hole patterns to complete your work station package.

Shipping — Approximate Lead Time Given at Order Entry

Where to Buy

URL copied to clipboard

View Full Line Catalog

Product Info
Details

Features:

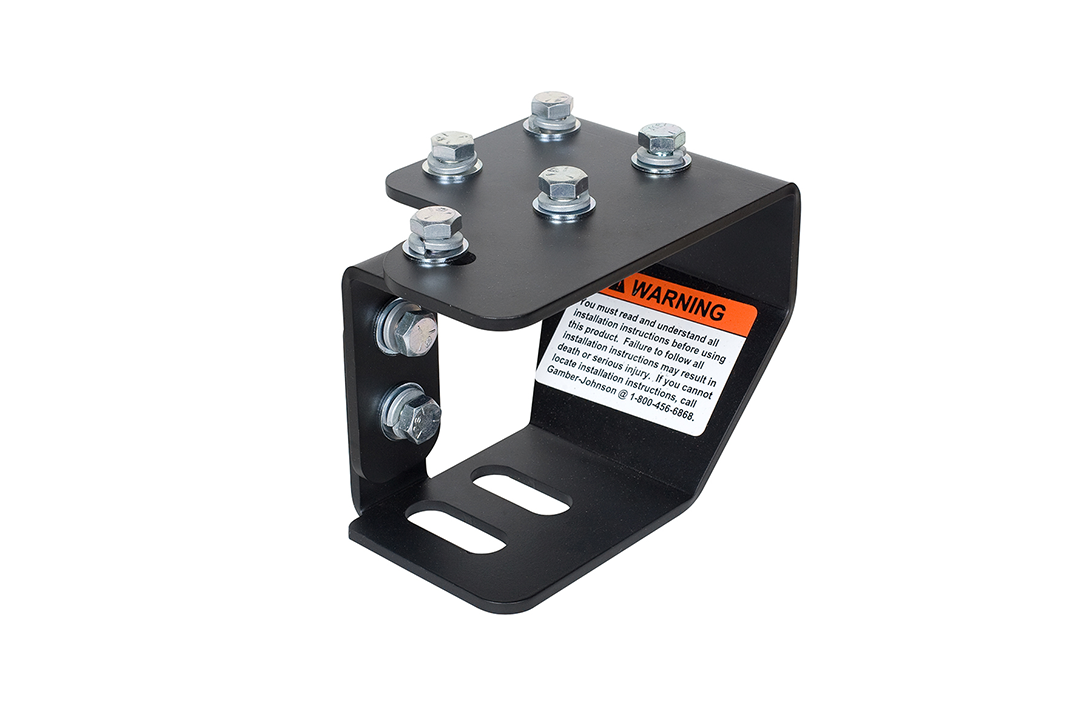

Vehicle Base (Item No. 7160-0536) Vehicle Base attaches to the passenger side seat studs. Vehicle Base works with the new Ford F-150 Aluminum Body Style Truck. Designed using heavy gauge steel for long-term durability.
Lower Tube (Item No. DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
6” Locking Slide Arm (Item No. 7160-0500) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
Support Brace (Item No. 7160-0230) Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration.

Kit Includes:

Vehicle Base (Item No. 7160-0536) Vehicle Base attaches to the passenger side seat studs. Vehicle Base works with the new Ford F-150 Aluminum Body Style Truck. Designed using heavy gauge steel for long-term durability.
Lower Tube (Item No. DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
6” Locking Slide Arm (Item No. 7160-0500) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
Support Brace (Item No. 7160-0230) Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration.
