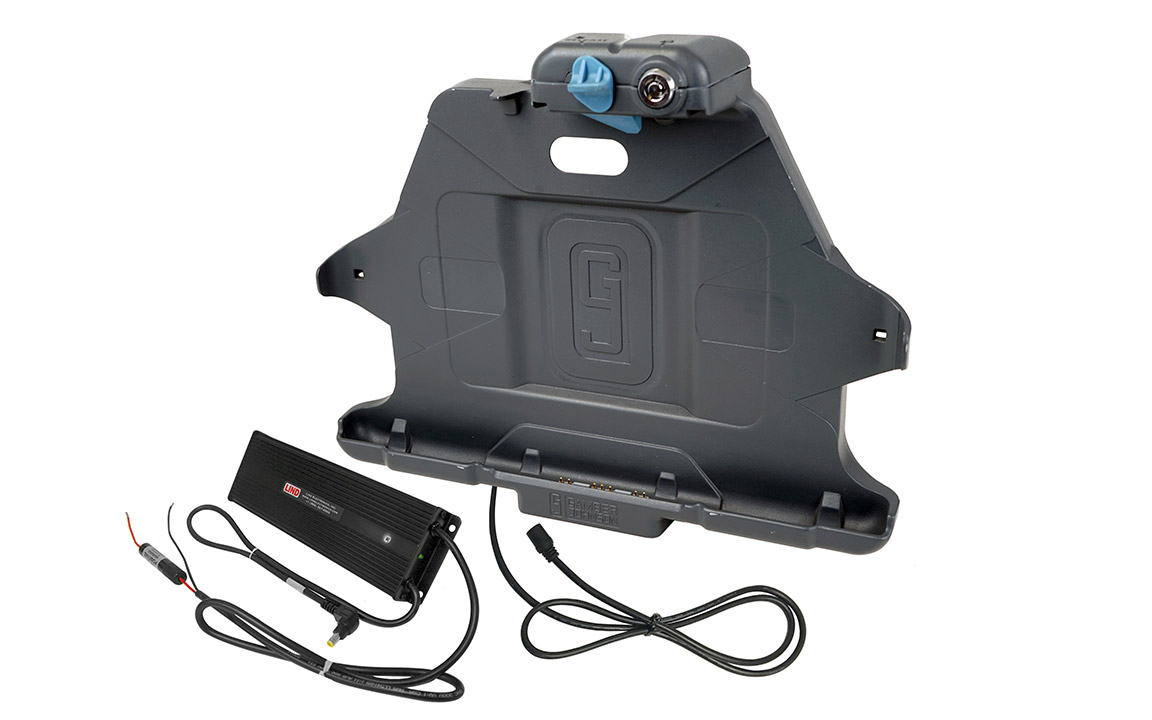

Samsung Galaxy Tab Active4 Pro/Active5 Pro Docking Station w/70-110V Isolated Power Adapter (2.5mm DC Power Jack)

$789.00

Item Number: 7170-0697-44

Description

Samsung Tab Active4 Pro/Active5 Pro tablet with Gamber-Johnson’s vehicle docking station, with dual powered USBs for added productivity. Each powered USB port provides 1.5A, strong enough to power a long-range scanner and a printer or other peripherals. Easily connect this docking station to an external power adapter using the 2.5mm DC Power Jack. This dock will keep the Samsung tablet charged all day long and provides the port replication to connect the right peripheral devices to get the job done

The adapter plate (7160-1942) allows easy one-person field installation when adding peripherals to your material handling solution. The rugged design of the Lind power adapters makes them ideally suited for use in harsh mobile environments.

Designed for forklift mounting applications

Add to Quote
Where To Buy Where to Buy
URL copied to clipboard
View Full Line Catalog

  • Weight

    1.55 lbs. / .70 kg

  • Height

    8.5 in / 21.5 cm

  • Width

    10.5 in / 26.6 cm

  • Depth

    2.5 in / 6.35 cm

Features:

  • Designed for the Samsung Galaxy Tab Active4 Pro/ Active5 Pro 10-Inch rugged tablet with rugged case
  • Kit includes Samsung Tab Active4 Pro/Active5 Pro docking station (7160-1418-50) and 70-110V isolated power adapter (7300-0418)

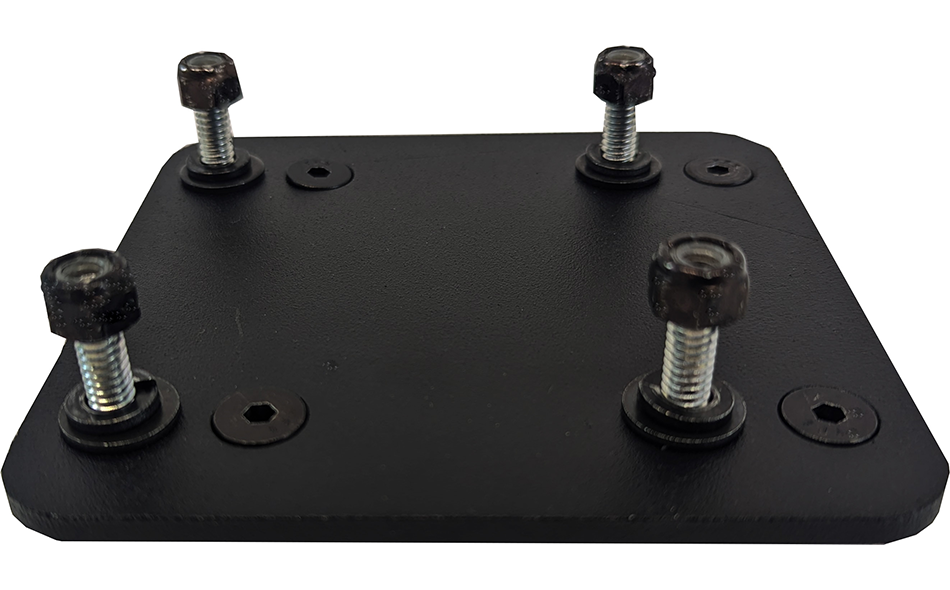

  • 75MM HOLES TO STUDS ADAPTER PLATE  (7160-1942) included for easy one person installation when adding peripherals to your material handling solution
  • Dual powered USB ports; 1.5A for each port for connecting peripheral devices
  • 10-40V power input range to support a wide range of mobile applications
  • Access to all control buttons, camera, ports and stylus while the tablet is safely docked.
  • Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
  • Simple, one-handed docking and release operation
  • POGO pin connector and internal power supply provides power to charge the Samsung tablet while docked
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products.
  • 2.5 MM in-line jack to quickly connect to a compatible Power supply
  • Can be mounted on a flat vertical surface.
  • Composite design for reduced overall weight.

Purchase this product through a Reseller in your area.

  • Model:

    • Tab Active Pro
    • Tab Active4 Pro
    • Tab Active5 Pro

  • Device OEM:

    • Samsung

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Port Replicators:

    (2) USB 2.0 - each with 1.5A power

  • Device Type:

    • Tablet

  • Industry:

    • Material Handling

  • Sub Type 1:

    • Docking Kit

  • Notes:

    Docking Stations Rev M and newer are compatible with the TabActive5 Pro tablets. For older docking stations, an upgrade kit is available. Please contact us.

    Compatible Accessories:

    • InfoCase FM-SNP-TABA5PRO Rugged Case
    • InfoCase FM-SNP-TABA4PRO Rugged Case
    • InfoCase FM-USHRN-KIT Harness Kit for  TabActive4 Pro
