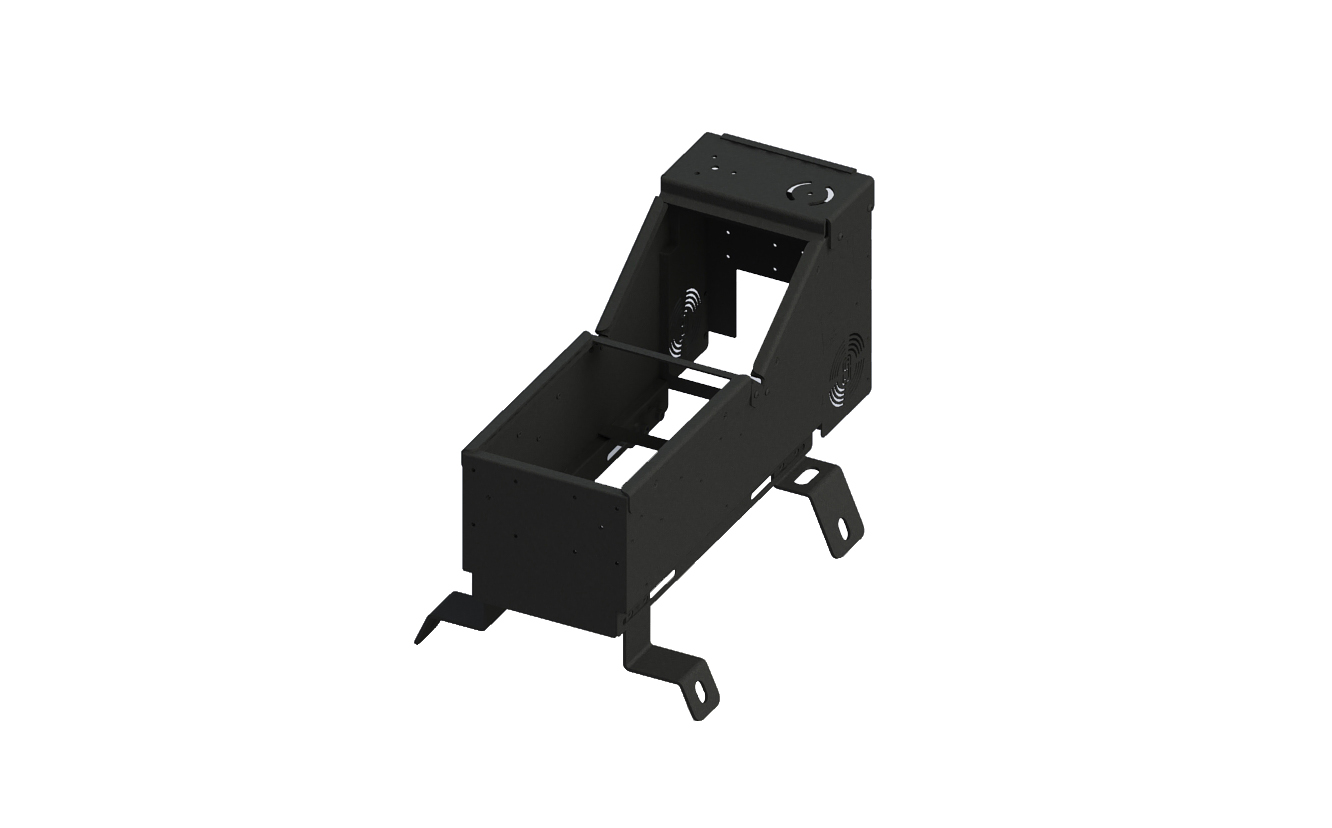

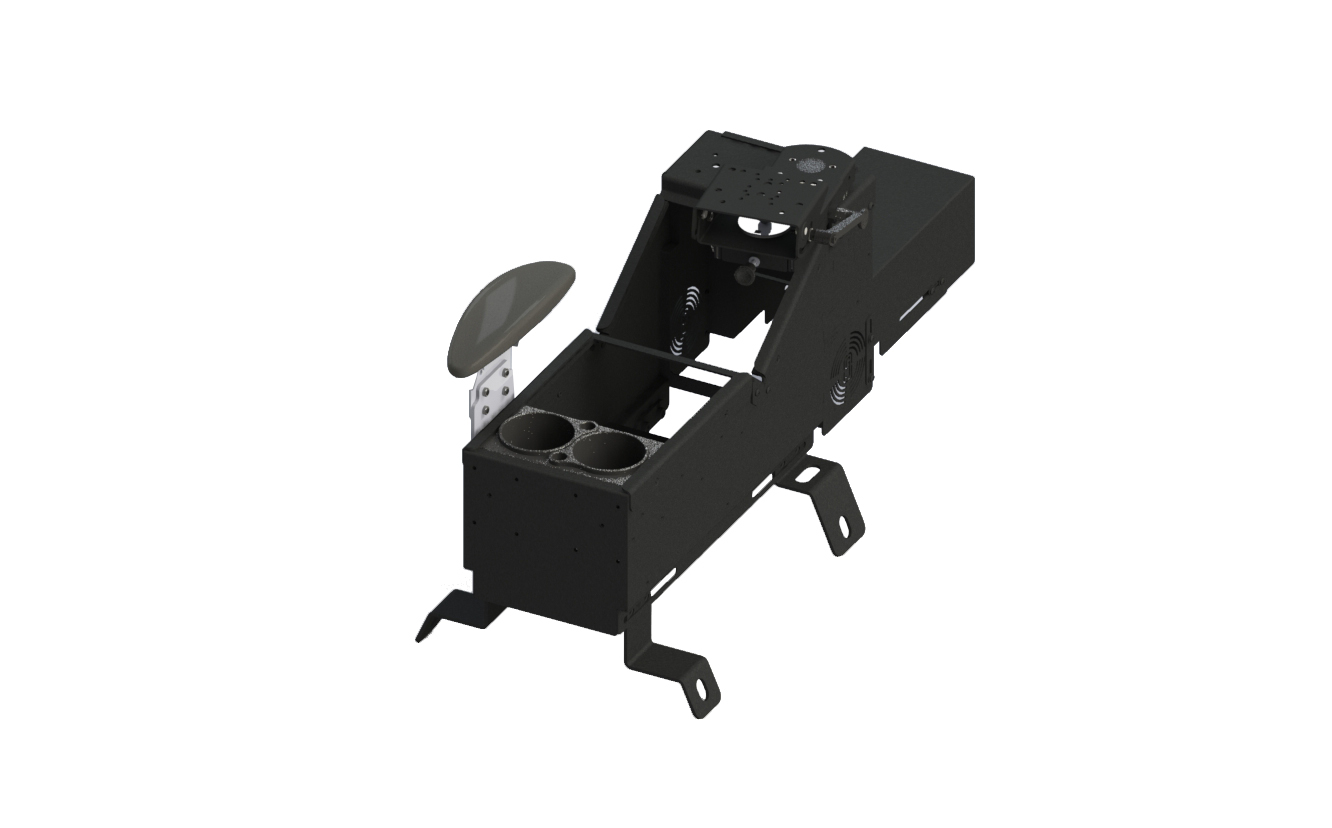

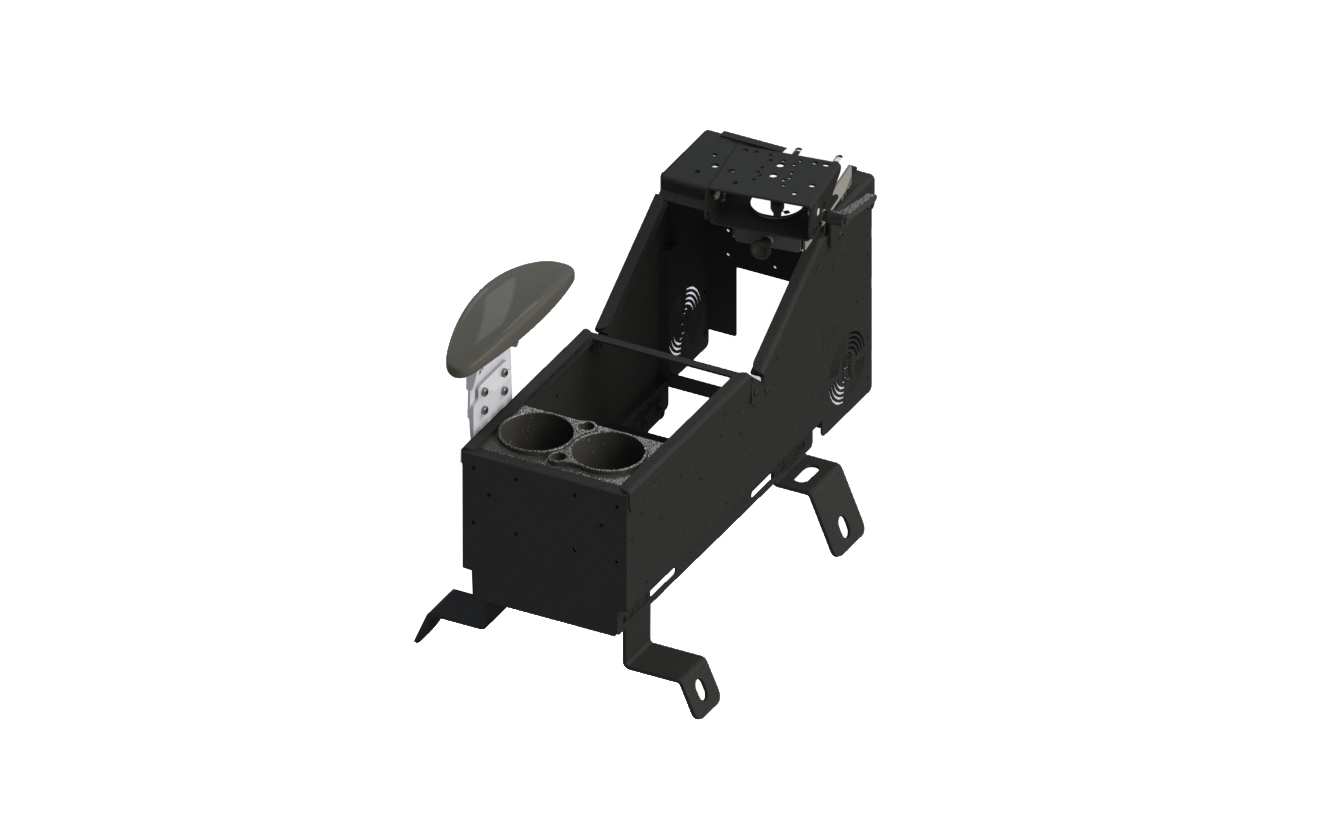

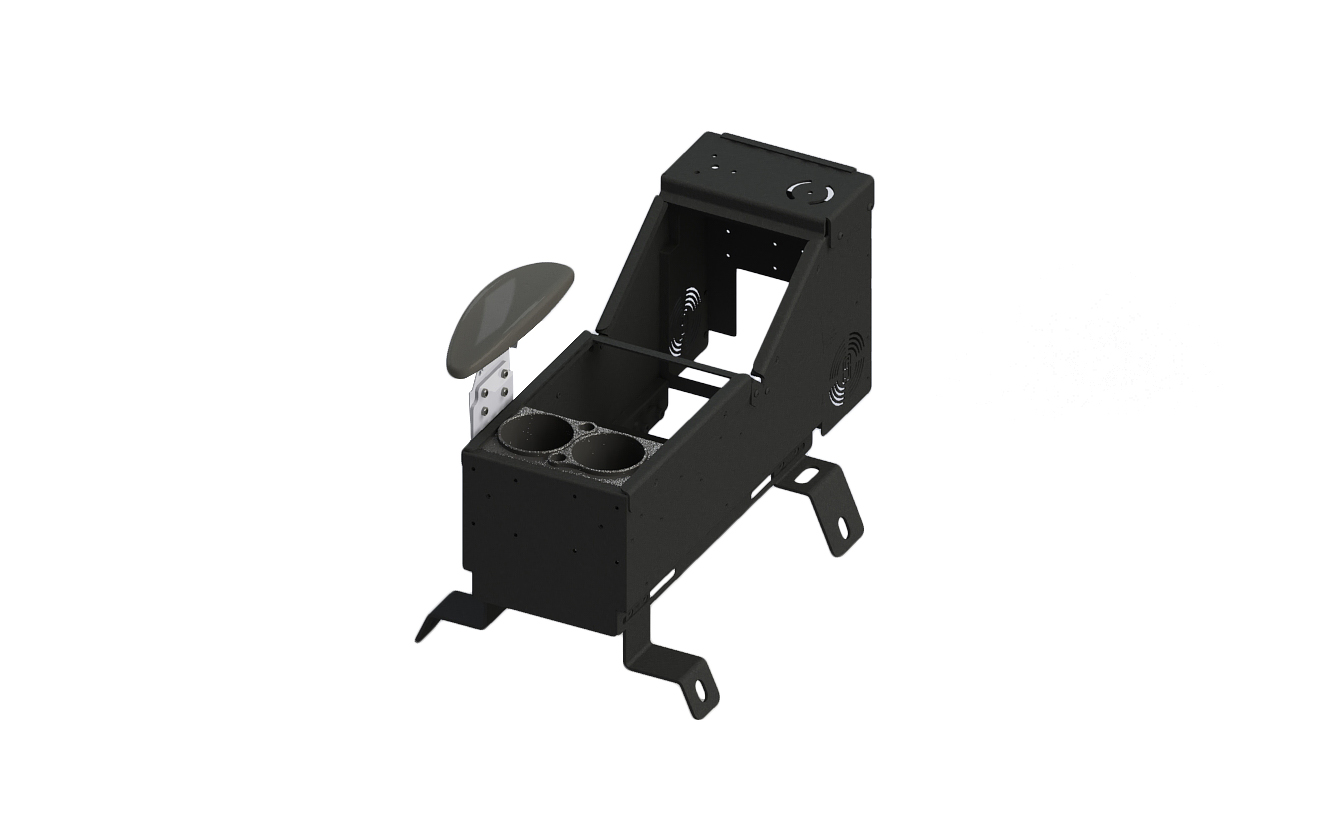

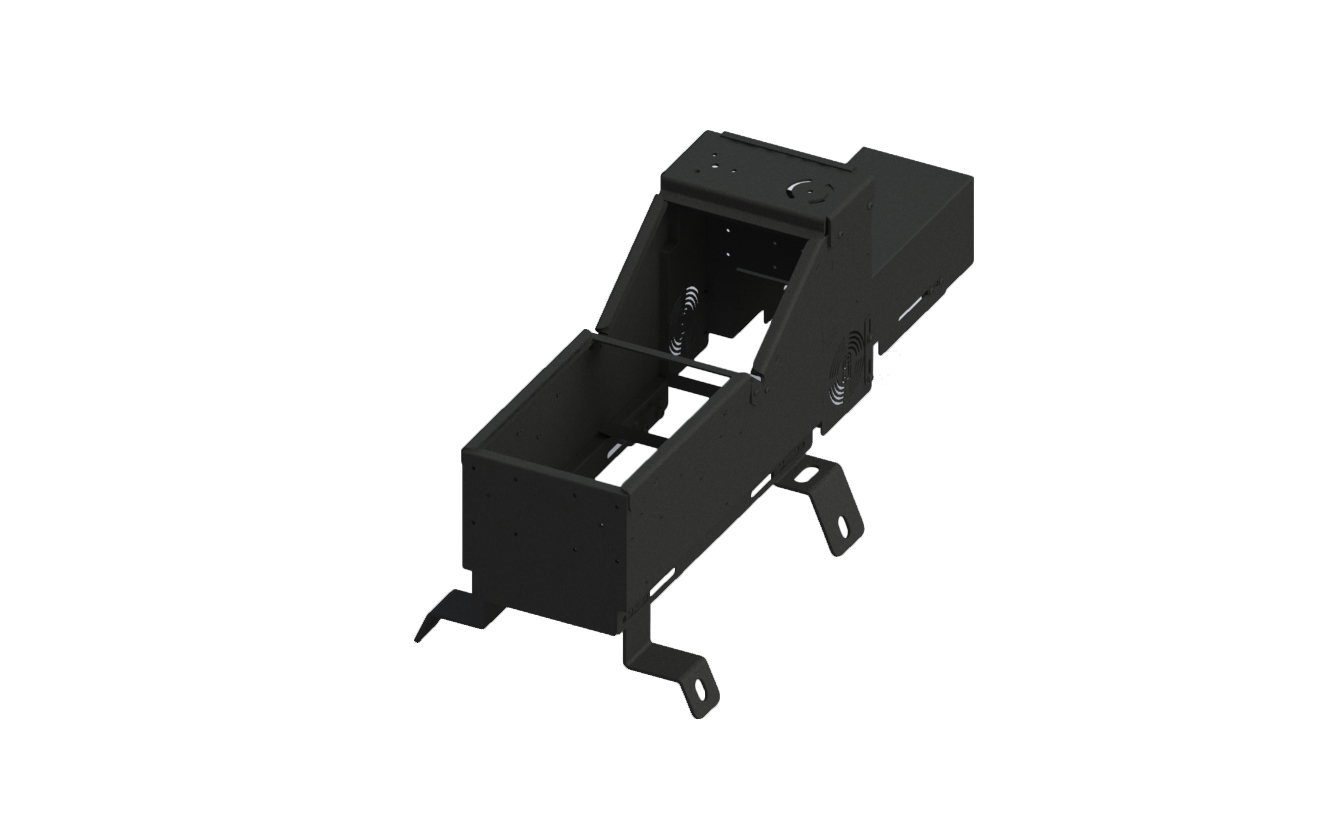

2019+ Chevy Silverado/GMC Sierra 1500 Console with Internal Cup Holder, Side Armrest, and Wiring Chase Kit

$1,096.00

Item Number: 7170-0784-03

Description

New console kits for the 2019 and newer model years for Chevrolet Silverado and GMC Sierra 1500’s. Kit includes console box, leg kit, side armrest, cup holder, and wire chase.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
View Full Line Catalog

  • Weight

    22.8 lbs / 10.34 kg

  • Height

    16.41 in / 41.7 cm

  • Width

    8.99 in / 22.8 cm

  • Depth

    39.5 in / 100.3 cm

Features:

  • Leg kit mounts to existing center seat bolts located along transmission hump
  • Console box filler wings going under dash are included with console
  • Top plate on console allows for mounting a motion attachment or close-to-dash
  • Top plate and spreader bar in middle are removable to easy installing of console and running wiring
  • Two (2) mounting holes on console top plate made for motion attachments (driver side and passenger side)
  • Console is low profile between the seats to create a comfortable work environment
  • Ships fully assembled (except for console accessories i.e. faceplate, 12V outlets, etc.)
  • Three (3) faceplate and three (3) fillers are included per console
  • Threaded PEMS on side and rear accommodate various armrests

Kit Includes:

  • Item No. 7160-0548 - Console Box
  • Item No. 7160-1325 - 2019+ Chevrolet/GMC 1500 Leg Kit
  • Item No. 7160-0846 - Internal Cup Holder
  • Item No. 7110-1013 - Side Armrest
  • Item No. 7110-1024 - Wiring Chase

Vehicle Compatibility:

  • Chevrolet
    • Silverado 1500 - 2019-2024
    • Silverado 2500 - 2020-2024
    • Silverado 3500 - 2020-2024
  • GMC
    • Sierra 1500 - 2019-2024
    • Sierra 2500 - 2020-2024
    • Sierra 3500 - 2020-2024

Purchase this product through a Reseller in your area.

  • Device OEM:

    • Chevrolet
    • GMC

  • Warranty:

    • Limited Lifetime Warranty

  • Mounting Space:

    • Horizontal Section accommodates 11.5 (29.21 cm) of mounting space excluding internal cup holder
    • Horizontal Section accommodates 7" (17.78 cm) of mounting space including internal cup holder
    • Vertical Section accommodates 7.5" (19.05 cm) of mounting space

  • Industry:

    • Fire/Rescue
    • Public Safety
    • Utility

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Console System

  • Sub Type 2:

    • Console Box Kit

  • Notes:

    Compatible Vehicles:

    • 2019MY-Current (Silverado/Sierra 1500)
    • 2020MY-Current (Silverado/Sierra 2500,3500 HD)
