2019+ Toyota RAV4 Pedestal Kit with Mongoose® 9″ Locking Slide Arm

$939.00

Item Number: 7170-0824-01

Description

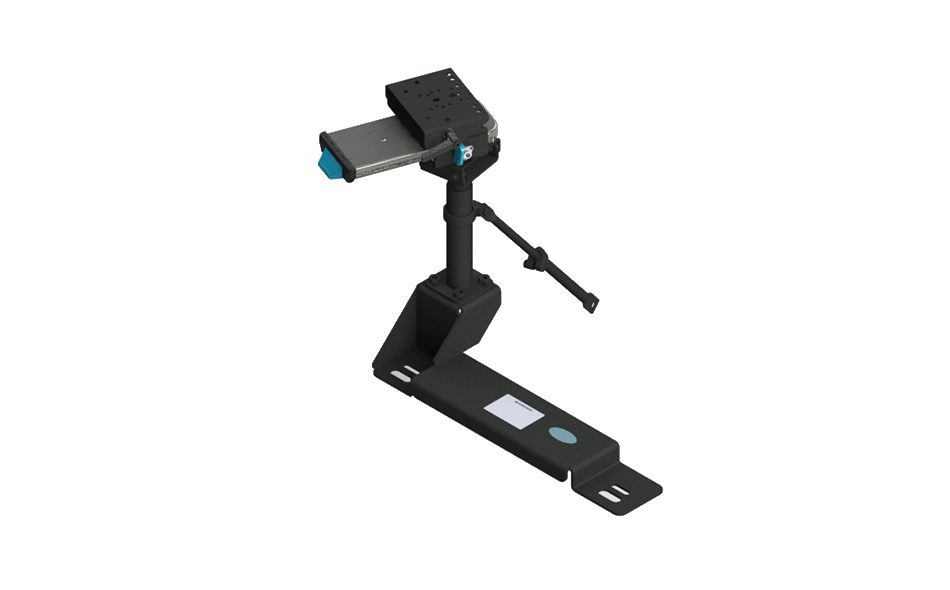

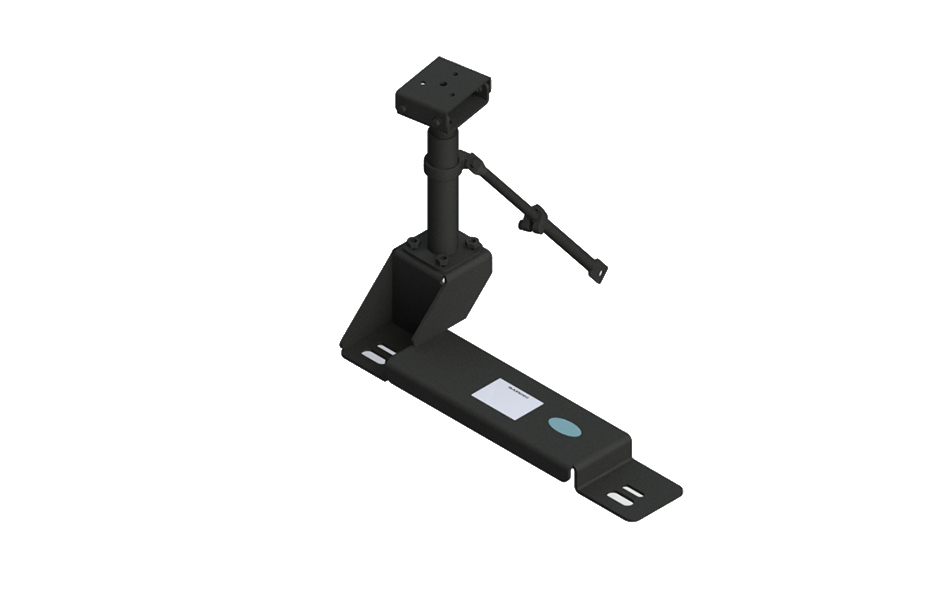

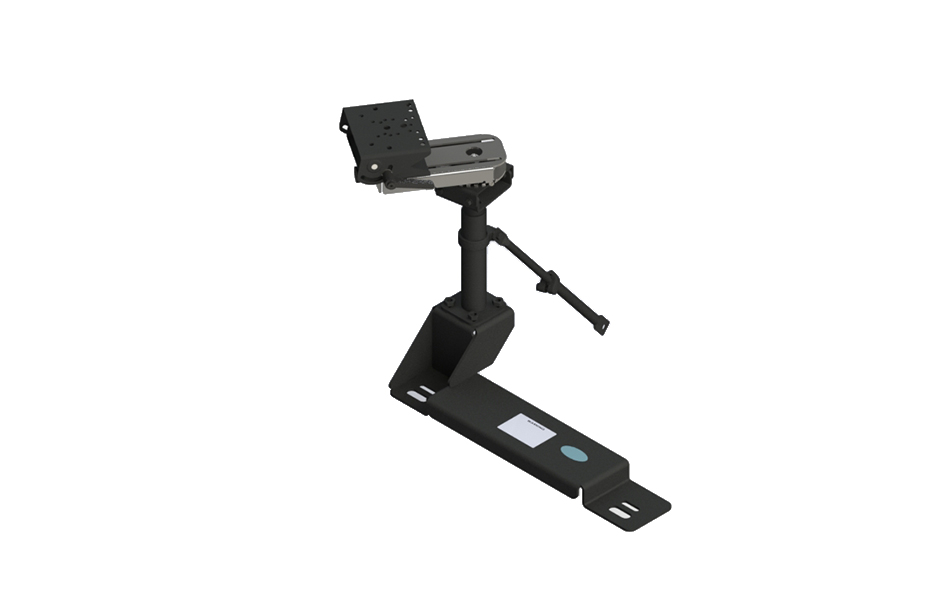

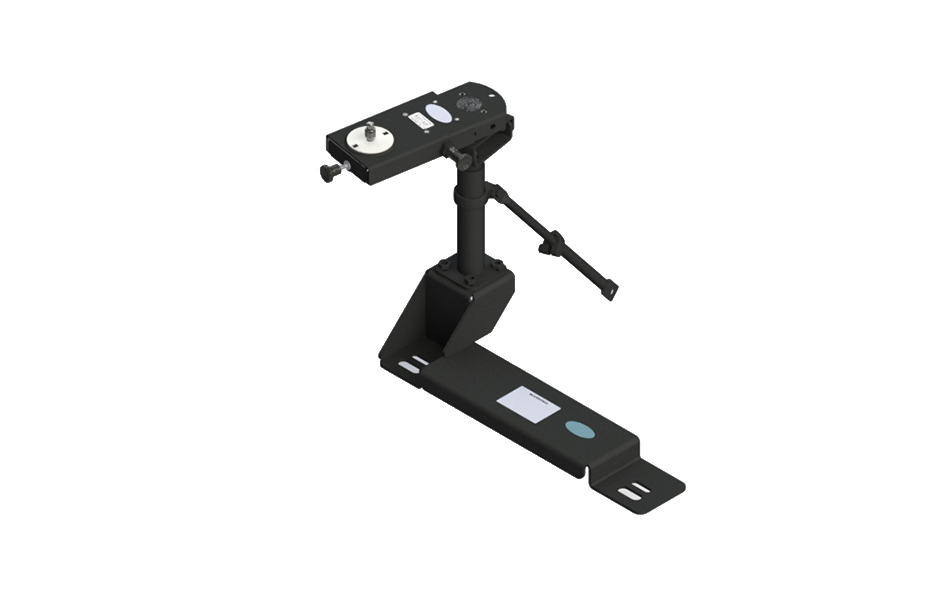

The 2019+ Toyota RAV4 Pedestal Kit with Mongoose® 9″ Locking Slide Arm easily mounts devices for optimal visibility and accessibility.

Shipping — Approximate Lead Time Given at Order Entry
URL copied to clipboard
View Full Line Catalog
  • Weight

    19 lbs / 8.62 kg

  • Height

    18 in / 45.72 cm

  • Width

    20.14 in / 51.16 cm

  • Depth

    7.15 in / 18.16 cm

Features:

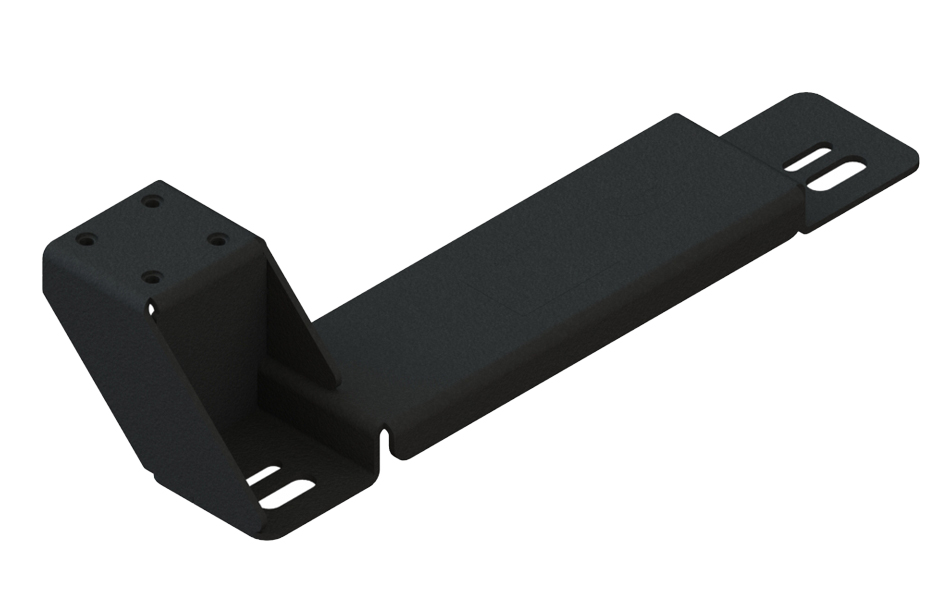

  • Vehicle Base (Item No. 7160-1514) Vehicle Base is a no-drill solution and attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability
  • Lower Tube (Item No. DS-LOWER-7) The Lower Tube provides vertical clearance over the center console or the seat
  • Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole Wrench is needed for loosening, tightening or height adjustment
  • Mongoose®- 9" Locking Slide Arm (Item No. 7160-0220) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (Item No. 7160-0230) Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity

Kit Includes:

  • Vehicle Base (Item No. 7160-1514) Vehicle Base is a no-drill solution and attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability
  • Lower Tube (Item No. DS-LOWER-7) The Lower Tube provides vertical clearance over the center console or the seat
  • Upper Pole (Item No. 7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole Wrench is needed for loosening, tightening or height adjustment
  • Mongoose®- 9" Locking Slide Arm (Item No. 7160-0220) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
  • Support Brace (Item No. 7160-0230) Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity

Vehicle Compatibility:

  • Toyota
    • RAV4 - 2019-2022

Purchase this product through a Reseller in your area.

  • Warranty:

    • Limited Lifetime Warranty
  • Sub Type 1:

    • Pedestal System
  • Sub Type 2:

    • Pedestal Kit
  • Device OEM:

    • Toyota
  • Industry:

    • Utility
  • Brand:

    • Gamber-Johnson
  • Notes:

    Compatible Vehicles:

    • 2019+ Toyota RAV4
