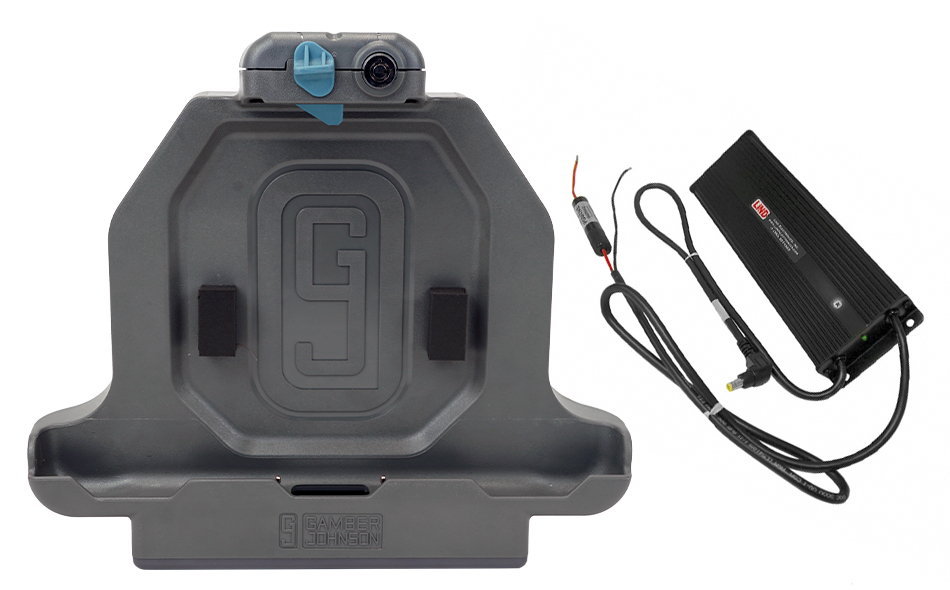

Zebra ET51/56 8″ SLIM Charging Cradle w/External LIND 20-60 VDC Isolated Power Adapter

$796.00

Item Number: 7170-0853-20

Description

Gamber-Johnson’s Zebra ET51/56 Tablet Charging Cradle will keep your ET51/56 computer charged all day long; This kit includes a LIND 20-60VDC isolated power adapter.

Shipping — Approximate Lead Time Given at Order Entry
URL copied to clipboard
View Full Line Catalog
  • Weight

    Docking Station: 1.6 lbs / 0.73 kg Power Supply: 1.6 lbs / 0.73 kg

  • Height

    Docking Station: 8.75 in / 22.23 cm Power Supply: 1.15 in / 2.92 cm

  • Width

    Docking Station: 9.93 in / 25.22 cm Power Supply: 9.3 in / 23.62 cm

  • Depth

    Docking Station: 3.12 in / 7.92 cm Power Supply: 3 in / 7.62 cm

Features:

  • Designed for the Zebra ET51/56  8" rugged tablet computer with rugged frame
  • This cradle does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the cradle
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • Guide pins prevent damage to the charging pins when cradling the tablet
  • Powered POGO pins transfer power to the  Zebra tablet (requires external power adapter)
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the cradle and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of cradle
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56 8" SLIM Tablet Charging Cradle
  • LIND 20-60V isolated power adapter
  • Mounting hardware
  • Installation guide

Purchase this product through a Reseller in your area.

  • Model:

    • ET50/51/55/56
  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available
  • Sub Type 1:

    • Cradle Kit
  • Device OEM:

    • Zebra
  • Antenna Pass-through:

    • No RF
  • Testing Specifications:

    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational)
    • MIL-STD 810G Shock/Vibration Tested
    • RoHS, FCC, CE Certifications
    • SAE J1455 Crash Tested
  • Device Type:

    • Tablet
  • Industry:

    • Fire/Rescue
    • Material Handling
    • Public Safety
    • Utility
  • Brand:

    • Gamber-Johnson
  • Notes:

    Compatibility: Compatible with Zebra ET51/56 rugged tablet computer with rugged frame

    WARRANTY

    • Cradle: 3-Year Limited Warranty
    • Power Adapter: 3-Year Warranty
