Zebra ET51/56 8″ SLIM Port Replication Docking Station w/External LIND Auto Power Adapter

$1,055.00

Item Number: 7170-0854-00

Description

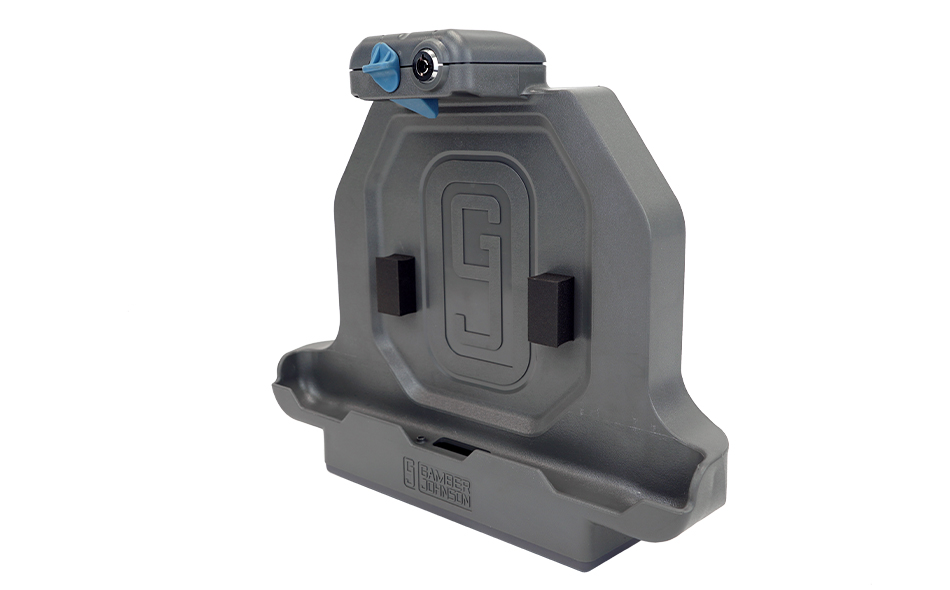

Gamber-Johnson’s Zebra ET51/56 8″ SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. This kit includes a LIND auto power adapter.

*Starting Aug 23rd 2022 Gamber-Johnson does not offer HDMI output on all ET5X docks because of global video chip shortages

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide Testing Summary
View Full Line Catalog

  • Weight

    Docking Station: 2.2 lbs / 1 kg Power Supply: 1.01 lbs / 0.46 kg

  • Height

    Docking Station: 8.75 in / 22.23 cm Power Supply: 1.2 in / 3.05 cm

  • Width

    Docking Station: 9.93 in / 25.22 cm Power Supply: 2.5 in / 6.35 cm

  • Depth

    Docking Station: 3.12 in / 7.92 cm Power Supply: 5.15 in / 13.08 cm

Features:

  • Designed for the Zebra ET51/56 8" rugged tablet computer with rugged frame
  • This dock does not accommodate ET51/56 accessories
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Access to all control buttons and ports while the tablet is safely docked
  • POGO pin connector provides power to charge the Zebra tablet while docked
  • Bottom-facing I/O ports; integrated cable restraint/cable management system
  • Guide pins prevent damage to the docking connection when docking the tablet
  • Composite/aluminum design for reduced weight and extended durability
  • Designed with rounded edges to enhance personal safety
  • Keyed lock for security and theft deterrence
  • Forward facing docking latch/release for easy one-handed operation:
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
    • To remove, lift latch to disengage and pull computer out of docking station
  • VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson’s Zirkona mounting products

Kit Includes:

  • Zebra ET51/56  8" SLIM Port Replication Docking Station
  • LIND Power adapter
  • Mounting hardware
  • Installation guide

Purchase this product through a Reseller in your area.

  • Model:

    • ET50/51/55/56

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Sub Type 1:

    • Docking Kit

  • Device OEM:

    • Zebra

  • Antenna Pass-through:

    • No RF

  • Port Replicators:

    • Ethernet (1) - RJ45 (322 mb/s)
    • Power Input: 12VDC
    • RS232 Serial (1) - Power on pin 9 (825mA)
    • USB 3.0 (2) - 9 pin (900mA)
    • Zebra Certified Electronics

  • Testing Specifications:

    • Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
    • MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational)
    • MIL-STD 810G Shock/Vibration Tested
    • RoHS, FCC, CE Certifications
    • SAE J1455 Crash Tested

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Notes:

    Compatible with Zebra ET51/56 rugged tablet computer with rugged frame
