Weight
KIT: 10.95 lbs / 4.97 kg
-
Height
NA
-
Width
NA
-
Depth
NA
Features:
Notepad™ V Universal Cradle:
- Cradle is extruded aluminum with adjustable height, width, and depth
- Special “flanged” side clip design provides superior strength and can be easily adjusted
- Sliding mounting bar on the bottom allows for multiple positions for offset capabilities when used with a the motion attachment
- 90 degrees wing turn closure latch allows for fast initial size adjustment allows for quick computer insertion and removal has built-in heavy duty key lock (keyed alike)
- Product Information:
- Weight: 6.5 lbs / 2.95 kg
- Height: 1.62 in / 4.11 cm
- Width: 11.75 in / 29.85 cm
- Depth: 9.5 in / 24.13 cm

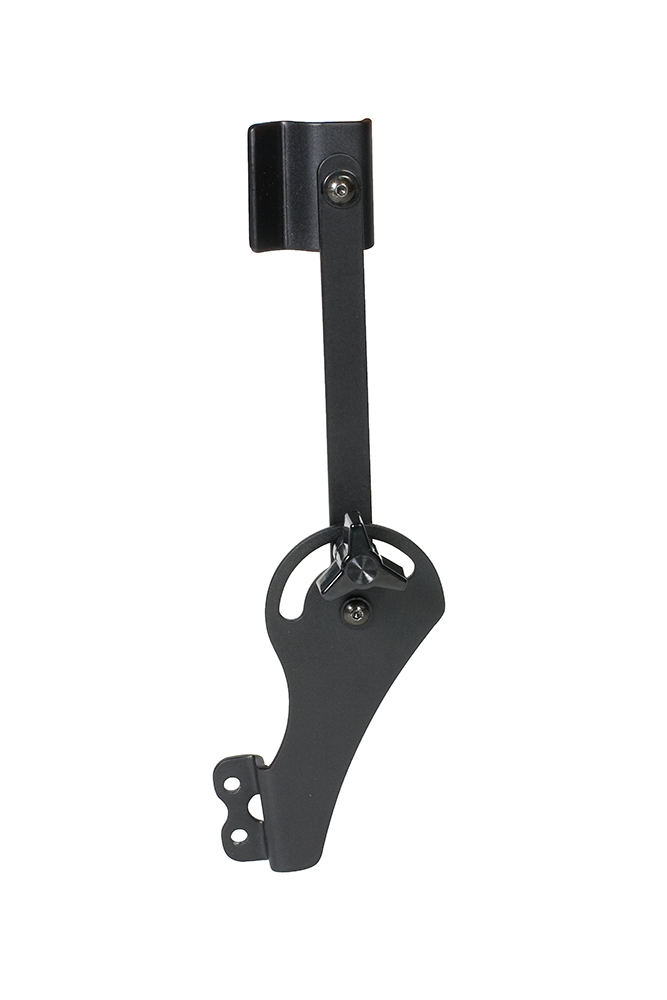

Screen Support:
- Attaches to the back right corner of the cradle and can be positioned up to 40 degrees backward or 100 degrees forward
- Product Information:
- Weight: 0.5 lbs / 0.23 kg
- Height: 8.75 in / 22.23 cm
- Width: 2.5 in / 6.35 cm
- Depth: 1.5 in / 3.81 cm
Shock/vibration Isolator Plate:
- Positioned between any Motion Attachment and Gamber-Johnson Docking Station or Cradle
- VESA 75mm and Gamber-Johnson 2" x 4.09" mounting hole patterns
- Product Information:
- Weight: 2.43 lbs / 1.1 kg
- Height: 0.85 in / 2.16 cm
- Width: 7 in / 17.78 cm
- Depth: 6.5 in / 16.51 cm
LIND Power Supply Mount:
- Attaches between the Docking Station/Cradle and Motion Attachment of any Gamber-Johnson Docking Station or Cradle with VESA or Gamber-Johnson hole pattern.
- Accommodates many LIND power supply models
- Product Information:
- Weight: 1.52 lbs / 0.69 kg
- Height: 5 in / 12.7 cm
- Width: 1.27 in / 3.23 cm
- Depth: 10.01 in / 25.43 cm
Kit Includes:
- Notepad™ V Universal Cradle
- Notepad™ V Screen Support
- Shock / vibration Isolator Plate
- Power Supply Mount
- Installation Guides
- Mounting Hardware
Purchase this product through a Reseller in your area.
