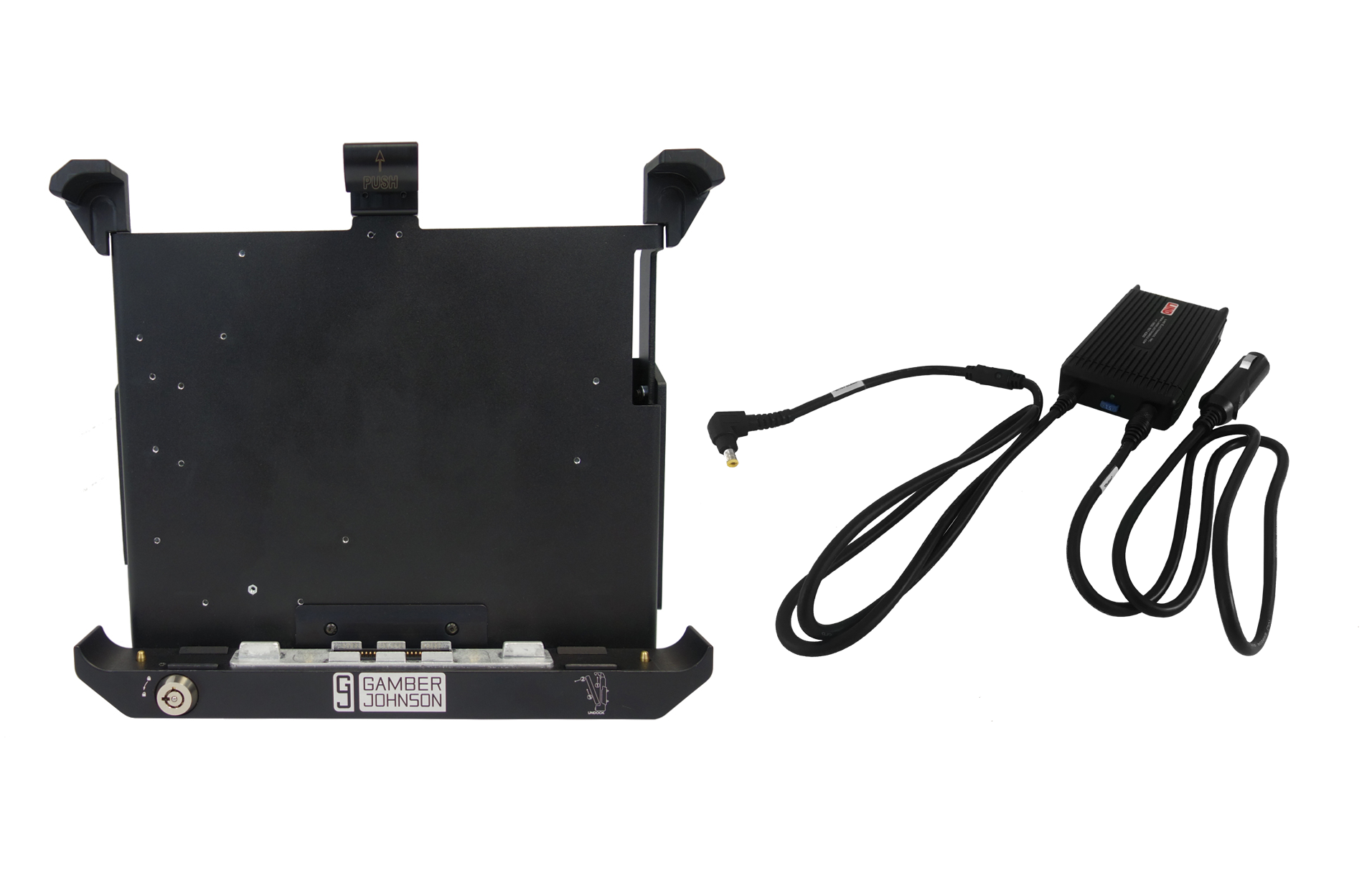

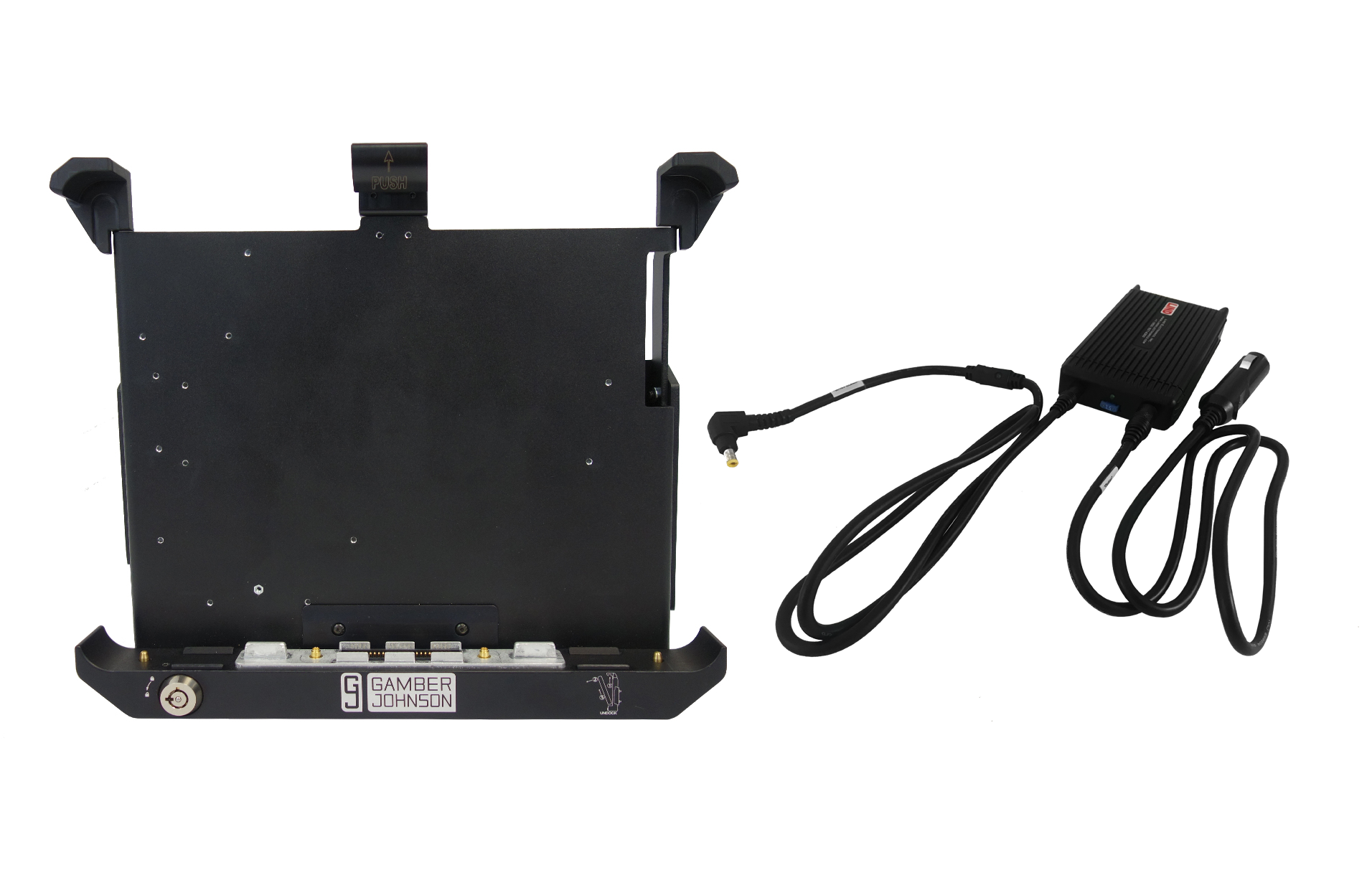

TrimLine™ Panasonic TOUGHBOOK® 33 Tablet Docking Station, Lite Port, Dual RF

$1,852.00

Item Number: 7300-0196-02

Description

Conserve valuable cabin space with our thinnest version of the CF-33 tablet docking station. Can be purchased as a kit with a power adapter.



Add to Quote
Where To Buy Where to Buy
URL copied to clipboard
Installation Guide Testing Summary
View Full Line Catalog

  • Weight

    6.00 lbs / 2.72 kg

  • Height

    10.80 in / 27.43 cm

  • Width

    12.30 in / 31.24 cm

  • Depth

    3.00 in / 7.62 cm

Features:

  • Space saving and ergonomic design improves safety and comfort.
  • CNC machined aluminum construction for rugged reliability.
  • Easy, one handed operation.
  • Top mounted USB ports for compatibility with “Clamshell” mounts.
  • Compatible with Panasonic CF-33 Toughpad tablets without external accessories VESA 75mm hole pattern.
  • Internal Panasonic circuit board for device compatibility.
  • Floating, protected docking connector for reliable docking connection.
  • Flex lock (keyed alike) feature for theft deterrence.
  • Optional cradle version (no ports) available.
  • Available with power indicator light when purchased as kit with PSU.
  • Dual RF TNC

Purchase this product through a Reseller in your area.

  • Model:

    • TOUGHBOOK 33

  • Device OEM:

    • Panasonic

  • Warranty:

    • 3 Year Limited Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Testing Specifications:

    The TOUGHBOOK 33 tablet docking station is designed and tested to rugged environmental standards. It's TOUGHBOOK Certified; and has passed MIL-STD-810G shock/vibration; crash; cycle; RoHS; FCC; and CE testing.

  • Port Replicators:

    • Ethernet (2)
    • Serial (1)
    • USB 2.0 (4)
    • USB 3.0 (2)
    • Power Input: 16Vdc

  • Antenna Pass-through:

    • Dual RF

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Lite

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock

  • Notes:

    • Limited Lifetime Warranty on structural components
    • 3-Year Limited Warranty on electronics
