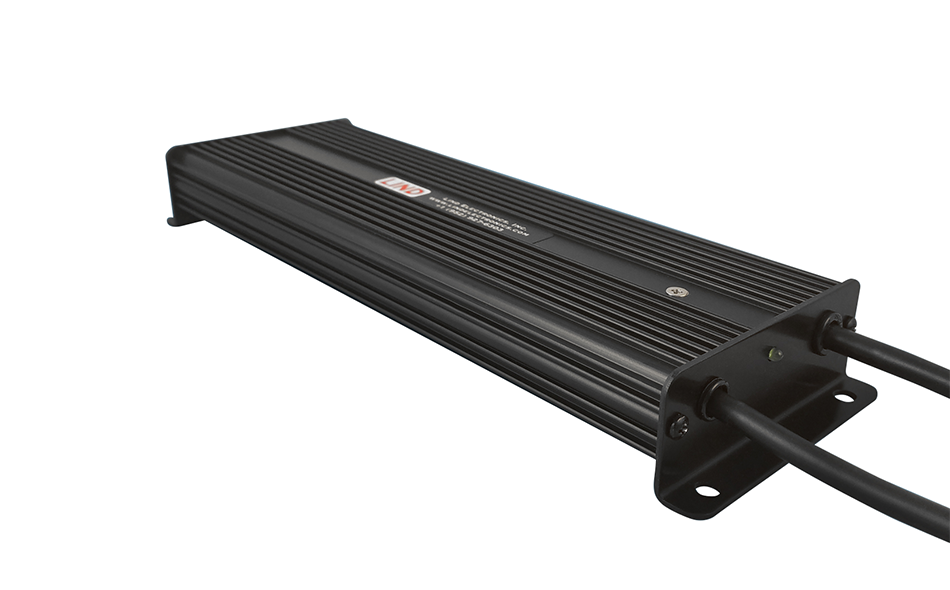

Dell LIND Power Supply, 12-32 VDC Isolated DC/DC Power Adapter

$305.00

Item Number: 7300-0305

Description

The LIND 12-32 VDC Isolated DC/DC Power Adapter is designed to power your Dell-compatible computer. The adapter incorporates the highest degree of circuit protection for your device and the adapter itself.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
View Full Line Catalog

Features:

  • Electrical isolation prevents ground loops
  • Rugged aluminum housing
  • Flanged end plates for easy mounting
  • Low/High Input Voltage Disconnect
  • LED flash rate identifies fault
  • Output Short Circuit Protection
  • Output Over-current Protection
  • Internal Over Temperature Protection
  • Automatic Restart 10 seconds after Fault Removal
  • LED Output Power Present Indicator
  • Reverse polarity disconnect

Purchase this product through a Reseller in your area.

  • Device OEM:

    • Dell

  • Warranty:

    • 3-year Limited Warranty by LIND

  • Model:

    • 10 Rugged Extreme Tablet (7030)
    • Dell 12 Rugged Extreme Tablet (7230)

  • Specification:

    • Input Voltage Range: 12 to 32 VDC
    • Output Voltage: 20 VDC
    • Output Current: 4.5 amps (max)
    • Output Power: Up to 90W
    • 500 VDC Input/Output Isolation (output tied to chassis)
    • Operating Temperature: -20° to +40° C
    • Storage Temperature: -40° to +85° C
    • Enclosure: Extruded Aluminum
    • Weight: 1.25 pounds excluding cables
    • Dimensions: 9.3 x 3.0 x 1.15 inches excluding cables
    • Mounting Hole Size: .20 inch

  • Industry:

    • Fire/Rescue
    • Intermodal
    • Logistics
    • Material Handling
    • Public Safety

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Power Adapter

  • Sub Type 2:

    • Power Supplies & Mounts

  • Notes:

    Dell Pro Rugged 10 Tablet

    Dell Pro Rugged 12 Tablet
