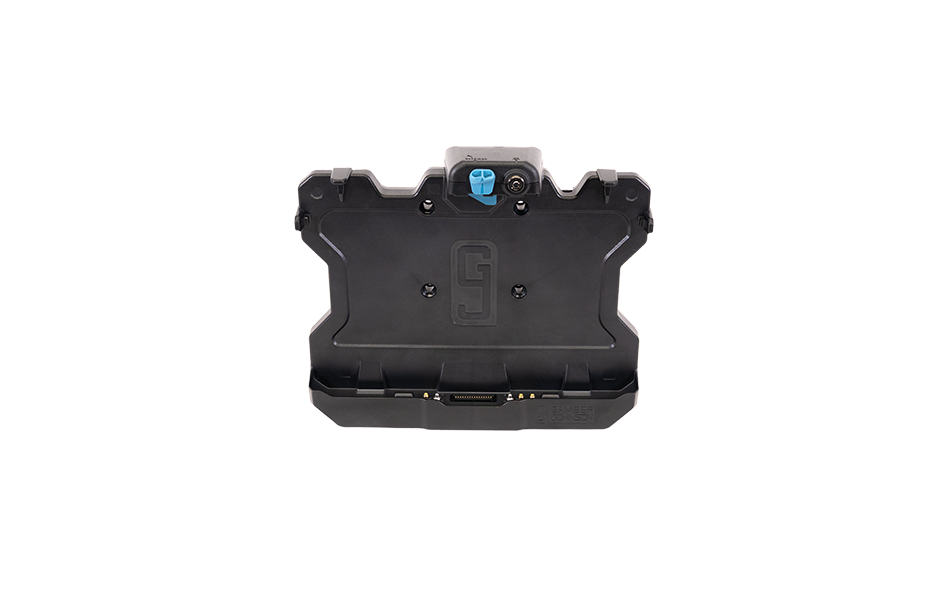

Getac ZX10 THIN Tablet Docking Station (No RF)

$673.00

Item Number: 7160-2102-00

Description

The Getac ZX10 THIN Docking Station (No RF) offers a space-saving design that occupies less mounting area in the vehicle—ideal for tight installations. This docking station features full-powered dual USB ports, microphone and speaker/headphone ports, an RJ45 Ethernet port, easy one-hand docking and release, a keyed lock for added security, and a VESA 75mm mounting pattern for compatibility with a wide range of Gamber-Johnson mounting solutions.

Add to Quote
Shipping — Available for Pre-Order
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    2.05 lbs / 0.93 kg

  • Height

    9.75 in / 24.77 cm

  • Width

    11.25 in / 28.58 cm

  • Depth

    3 in / 7.62 cm

Features:

  • Getac certified electronics
  • Compatible with the Getac ZX10 tablet
  • Space-saving design occupies less mounting area in the vehicle
  • Access to all tablet control buttons and ports while the tablet is docked
  • Docking connector gasket provides additional water resistance and protection.
  • Downward-facing I/O ports, integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern

Purchase this product through a Reseller in your area.

  • Model:

    • ZX10

  • Device OEM:

    • Getac

  • Warranty:

    • 3 Year Limited Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Power Supply:

    Power adapter is not included, please use one of the following:

    • Getac 65W automotive power adapter with bare wire lead (7300-0744)
    • Getac 65W automotive power adapter with cigarette lighter connector (7300-0745)
    • Getac 120W automotive power adapter with bare wire lead (7300-0516)
    • Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
    • LIND 12-32V material handling isolated power adapter (7300-0413)
    • LIND 20-60V material handling isolated power adapter (7300-0412)
    • LIND 72-110V material handling isolated power adapter (7300-0416)

  • Testing Specifications:

    • Getac Certified
    • Vibration Tested: MIL-STD 810G Operational/Non-Operational
    • Shock Crash Hazard: SAEJ1455; Mechanical Shock: 40G
    • Cycle Test: Latch, Lock, and Docking Connector – 30,000 Cycles
    • Environmental: Thermal Shock; High/Low Temperature Operational & Storage
    • FCC, CE, RoHS, RCM Certified

  • Port Replicators:

    • (2) Full Powered USB 2.0 (1.5A Output) - 4 pin
    • (1) RJ45 Ethernet
    • (1 each) Headphone / Microphone
    • Power input - 19 VDC

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock

  • Notes:

    The ZX10 THIN docking station can be used with either an extended battery or hand strap accessory but will not accommodate use of both at the same time due to the slim design.
