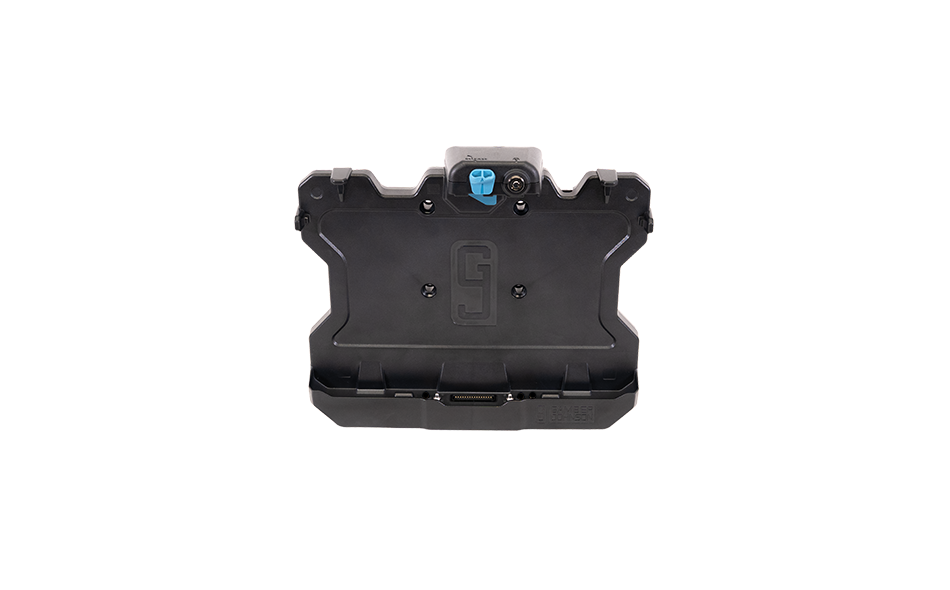

Getac ZX10 THIN Tablet Docking Station (TRI RF)

$864.00

Item Number: 7160-2102-03

Description

The Getac ZX10 THIN Docking Station (TRI RF) offers a space-saving design that occupies less mounting area in the vehicle—ideal for tight installations. This docking station features full-powered dual USB ports, microphone and speaker/headphone ports, an RJ45 Ethernet port, easy one-hand docking and release, a keyed lock for added security, and a VESA 75mm mounting pattern for compatibility with a wide range of Gamber-Johnson mounting solutions.

Add to Quote
Shipping — Available for Pre-Order
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide Testing Summary
View Full Line Catalog

  • Weight

    2.05 lbs / 0.93 kg

  • Height

    9.75 in / 24.77 cm

  • Width

    11.25 in / 28.58 cm

  • Depth

    3.00 in / 7.62 cm

Features:

  • Getac certified electronics
  • Compatible with the Getac ZX10 tablet
  • Space-saving design occupies less mounting area in the vehicle
  • Access to all tablet control buttons and ports while the tablet is docked
  • Docking connector gasket provides additional water resistance and protection.
  • Downward-facing I/O ports, integrated cable strain relief and cable management system
  • Floating docking connector for reliable connectivity in the most rugged environments
  • One-hand docking and release for efficient use all day long
  • Keyed lock for theft deterrence
  • Gamber-Johnson rugged construction and reliability
  • Composite design for reduced weight and durability
  • VESA 75mm mounting pattern

Purchase this product through a Reseller in your area.

  • Model:

    • ZX10

  • Device OEM:

    • Getac

  • Warranty:

    • 3 Year Limited Warranty
    • Extended Warranty/Gamber Guard Options Available

  • Power Supply:

    Power adapter is not included, please use one of the following:

    • Getac 65W automotive power adapter with bare wire lead (7300-0744)
    • Getac 65W automotive power adapter with cigarette lighter connector (7300-0745)
    • Getac 120W automotive power adapter with bare wire lead (7300-0516)
    • Getac 120W automotive power adapter with cigarette lighter connector (7300-0471)
    • LIND 12-32V material handling isolated power adapter (7300-0413)
    • LIND 20-60V material handling isolated power adapter (7300-0412)
    • LIND 72-110V material handling isolated power adapter (7300-0416)

  • Testing Specifications:

    • Getac Certified
    • Vibration Tested: MIL-STD 810H Operational/Non-Operational
    • Shock Crash Hazard: SAEJ1455; Mechanical Shock: 40G
    • Cycle Test: Latch, Lock, and Docking Connector – 30,000 Cycles
    • Environmental: Thermal Shock; High/Low Temperature Operational & Storage
    • FCC, CE, RoHS, RCM Certified

  • Port Replicators:

    • (2) Full Powered USB 2.0 (1.5A Output) - 4 pin
    • (1) RJ45 Ethernet
    • (1 each) Headphone / Microphone
    • Power input - 19 VDC
    • Tri RF Pass-through (SMA)

  • Antenna Pass-through:

    • Tri RF

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Dock

  • Notes:

    The ZX10 THIN docking station can be used with either an extended battery or InfoCase hand strap accessory (part number FM-XHSTP-M) but will not accommodate use of both at the same time due to the slim design.
