Getac S410 Docking Station with Getac 120W Auto Power Supply, TRI RF – SMA

$1,554.00

Item Number: 7170-0537

Description

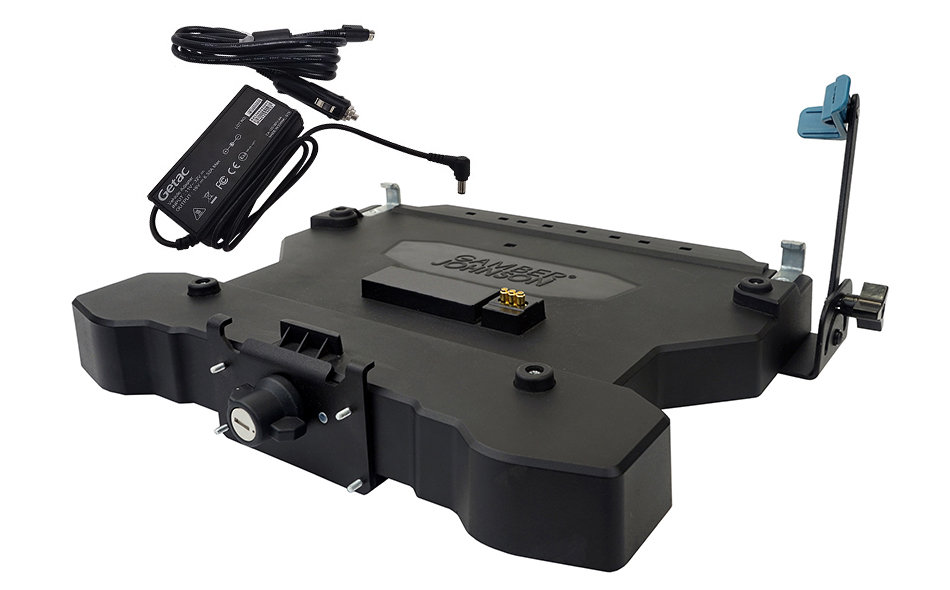

Gamber-Johnson’s S410 docking station is designed to mount a Getac S410 notebook in a fleet vehicle. The docking station is thin and light (4.47 lbs/2.03 kg) and features a spring-loaded connector to ensure connectivity even in the roughest terrain.

Shipping — Approximate Lead Time Given at Order Entry
URL copied to clipboard
View Full Line Catalog
  • Weight

    4.47 lbs. / 2.03 kg

  • Height

    12.39" / 31.47 cm

  • Width

    13.84" / 35.15 cm

  • Depth

    2.90" / 7.37 cm

Features:

  • Small footprint designed to maximize available space.
  • Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system.
  • Rear hooks and guide pins ensure proper alignment and docking connectivity.
  • Spring-loaded docking connector to ensure connectivity in the roughest terrain.
  • Plate draws back into docking station when the computer is docked.
  • Docking station designed to accommodate optional VGA attachments.
  • Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern.
  • Rugged composite/steel construction with black powder coat finish for long-term durabililty.
  • Screen support is included with the dock.
  • Comes with a power supply bracket to attach the Getac power supply (Item No. 17057) to the bottom of the dock.

Purchase this product through a Reseller in your area.

  • Warranty:

    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available
  • Model:

    • S410
  • Sub Type 1:

    • Docking Kit
  • Device OEM:

    • Getac
  • Antenna Pass-through:

    • Tri RF
  • Port Replicators:

    • (1) USB 2.0; 4 Pin
    • (3) HDMI 19 Pin Serial, D-sub, 9 Pin
    • Ethernet - RJ45 USB 3.0, 9 Pin
    • Input voltage - 19 VDC
    • Microphone/speaker
    • RF (SMA) antenna pass-through for GPS, WLAN and WWAN (optional)
    • VGA D-sub, 15 Pin
  • Power Supply:

    • Includes Getac 120W Automobile Power Adaptor (item no. 17057)
  • Testing Specifications:

    • Docking mechanism tested: 30,000 cycles
    • MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage)
    • RoHS, FCC C-Tick, E-Mark
    • SAE Standard J1455 Crash Test
    • Vibration/shock testing: MIL-STD 810G 514.5
  • Device Type:

    • Laptop
  • Industry:

    • Fire/Rescue
    • Public Safety
    • Utility
  • Port Replication:

    • Full
  • Brand:

    • Gamber-Johnson
