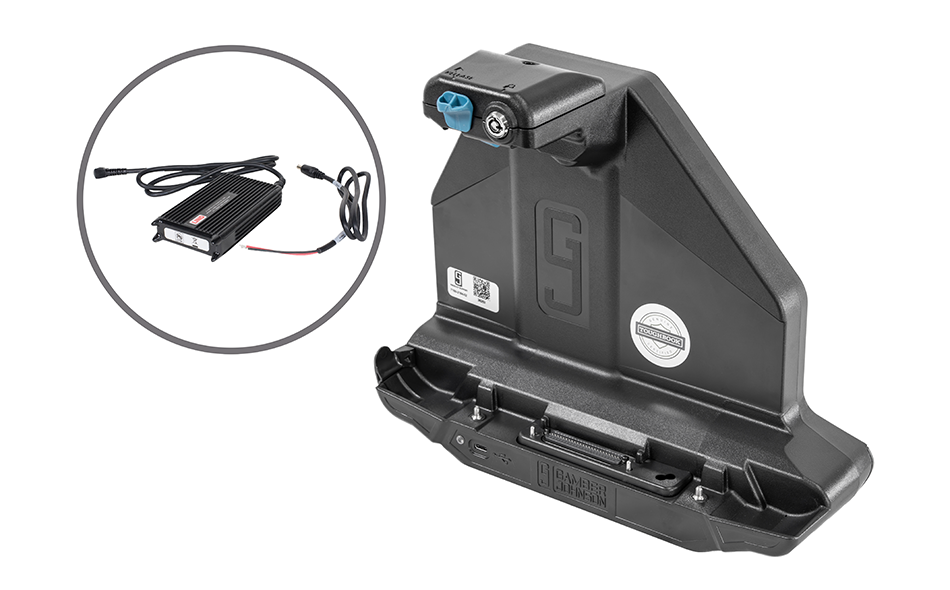

Panasonic TOUGHBOOK G2/G3 Standard Full Dock Kit (Dual RF) with 120W Cigarette Plug Power Supply

$1,581.00

Item Number: 7170-1300-02

Description

Make room in the vehicle plan for both existing peripherals and external antennas. The Standard Full dock in this kit brings non-powered RS-232, dual SMA RF pass-through, Ethernet and USB to TOUGHBOOK® G3 or G2. An included 120W cigarette-plug adapter supplies power through a compatible vehicle outlet. Front USB-C helps with connections during a shift, and compatible G2 field accessories can stay on the tablet when it returns to the dock.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    See Individual Components.

  • Height

    See Individual Components.

  • Width

    See Individual Components.

  • Depth

    See Individual Components.

Features:

  • Set down and get moving. Give the tablet a consistent place for its essential vehicle connections.
  • Ready for the next peripheral. Front USB-C gives users a convenient connection at the tablet.
  • Put the network and peripherals in reach. USB-A, rear USB-C and Gigabit Ethernet serve installed devices.
  • Connect the equipment already in use. Full replication includes non-powered RS-232 and rear USB-C display support.
  • A path for vehicle antennas. Two SMA RF pass-through connections support external antennas.
  • Dock and adapter together. Includes a 120W cigarette-plug adapter for compatible vehicle power.
  • Move to G3 on your schedule. The same Standard family supports G2, including its compatible field accessories.
  • Tested beyond the cab. MIL-STD-810H and SAE J1455 testing supports demanding vehicle work.


Purchase this product through a Reseller in your area.

  • Model:

    • TOUGHBOOK G2
    • TOUGHBOOK G3

  • Device OEM:

    • Panasonic

  • Warranty:

    • Individual Item Warranty Applies

  • Power Supply:

    Includes Power Supply:

    • Power Adapter – Panasonic 120W – Auto Adapter (7300-0747)

  • Testing Specifications:

    • TOUGHBOOK certification in progress
    • MIL-STD 810H Shock/Vibration Tested
    • MIL-STD 810H Environmental Testing: Humidity, High/low temperature, (storage/operational)
    • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
    • RoHS, FCC, CE, UKCA
    • SAE J1455 Shock Crash Hazard Test

  • Port Replicators:

    • 1 x RJ45 Ethernet 1Gbps
    • 1 x USB-A 5Gbps, 1.5A
    • 1 x USB-C 5Gbps, 0.9A
    • 1 USB-C 5Gbps, 1.5A (With DP Alt Mode)
    • 1 x USB-C 480Mbps, 0.5A (Front)
    • 1 x RS-232 Serial
    • 1 x 15 VDC Power Input

  • Antenna Pass-through:

    • Dual RF (SMA)

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Intermodal
    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Docking Kit
