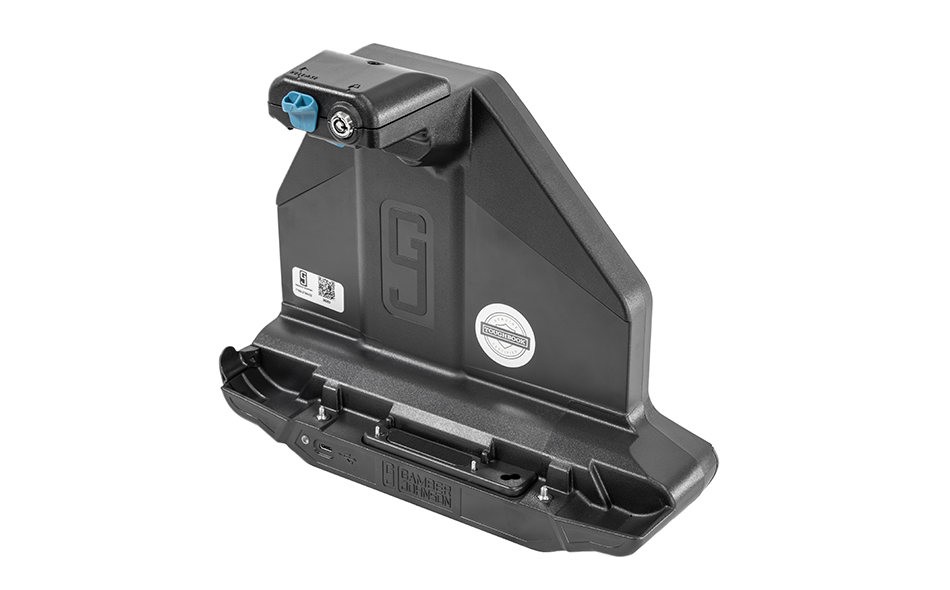

Panasonic TOUGHBOOK G2/G3 Standard Full Dock Kit (No RF, Powered Serial) with 120W Cigarette Plug Power Supply

$1,412.00

Item Number: 7170-1300-20

Description

Give powered serial peripherals a home in the vehicle and select their power solution at the same time. The Standard Full dock in this kit supports TOUGHBOOK® G3 or G2 with powered RS-232, Ethernet and USB; the included 120W cigarette-plug adapter supplies power from a compatible vehicle outlet. Front USB-C stays convenient for the user, and the dock accommodates compatible G2 field accessories as crews adopt G3.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    See Individual Components.

  • Height

    See Individual Components.

  • Width

    See Individual Components.

  • Depth

    See Individual Components.

Features:

  • Keep the workspace ready. A Standard dock puts the tablet at the center of the cab setup.
  • Connect at the front. USB-C access stays where the user can reach it, even with rear gear installed.
  • Give installed gear a home. Rear USB-C and USB-A join Gigabit Ethernet for vehicle peripherals.
  • Keep compatible serial equipment working. The powered RS-232 port joins rear USB-C display support.
  • A focused no-RF option. Select this version when antenna pass-through is not part of the vehicle plan.
  • Dock and adapter together. Includes a 120W cigarette-plug adapter for compatible vehicle power.
  • Designed for configured G2 tablets. Compatible with G3 and with G2 setups using an extended battery, rear strap or bumper guards.
  • TOUGHBOOK Certified. Tested for shock, vibration and harsh conditions; backed by a three-year limited warranty.


Purchase this product through a Reseller in your area.

  • Model:

    • TOUGHBOOK G2
    • TOUGHBOOK G3

  • Device OEM:

    • Panasonic

  • Warranty:

    • Individual Item Warranty Applies

  • Power Supply:

    Includes Power Supply:

    • Power Adapter – Panasonic 120W – Auto Adapter (7300-0747)

  • Testing Specifications:

    • TOUGHBOOK certification in progress
    • MIL-STD 810H Shock/Vibration Tested
    • MIL-STD 810H Environmental Testing: Humidity, High/low temperature, (storage/operational)
    • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
    • RoHS, FCC, CE, UKCA
    • SAE J1455 Shock Crash Hazard Test

  • Port Replicators:

    • 1 x RJ45 Ethernet 1Gbps
    • 1 x USB-A 5Gbps, 1.5A
    • 1 x USB-C 5Gbps, 0.9A
    • 1 USB-C 5Gbps, 1.5A (With DP Alt Mode)
    • 1 x USB-C 480Mbps, 0.5A (Front)
    • 1 x RS-232 Serial
    • 1 x 15 VDC Power Input

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Intermodal
    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Docking Kit
