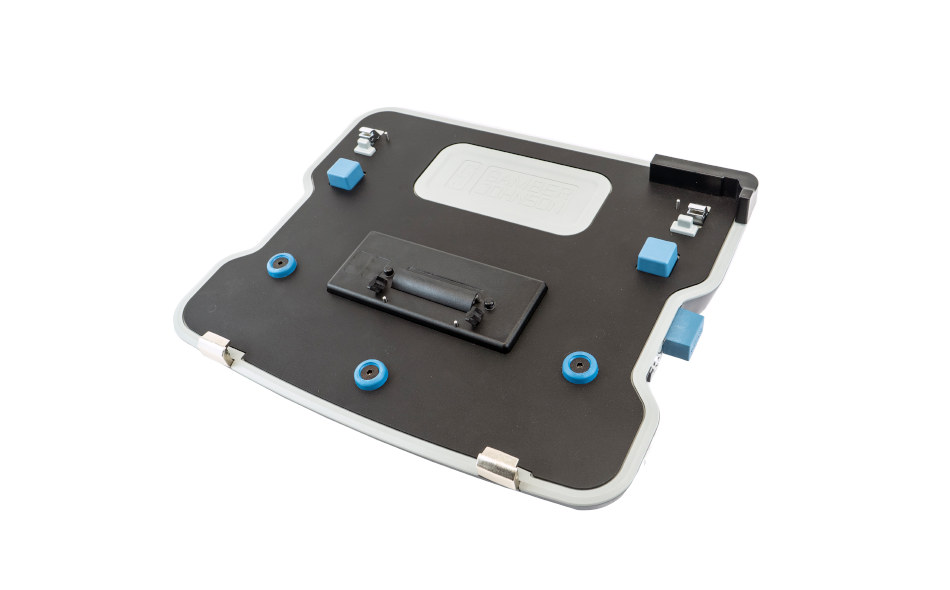

Panasonic TOUGHBOOK® 40 TrimLine Docking Station with Power Adapter, Lite Port, No RF

$2,257.00

Item Number: 7300-0605-16

Description

The docking station for the Panasonic TOUGHBOOK® 40 laptop comes with ‘Lite’ port replication using genuine Panasonic electronics, includes a key lock for increased security, and aluminum construction provides rugged durability. This is the ‘lite’ port replication, with no RF pass-through version. Quad RF pass-through and ‘Full’ port replication versions are also available. Power adapter included.

Ships from Canada: Effective March 4, 2025, all products shipping to the U.S. will be subject to either a GJ logistics surcharge or applicable customer-paid duties.

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet
View Full Line Catalog

  • Weight

    10.4 lbs / 4.72 kg

  • Height

    2.31 in / 5.87 cm

  • Width

    14.6 in / 37.08 cm

  • Depth

    12.74 in / 32.36 cm

Features:

  • CNC Aluminum construction for rugged reliability
  • Space saving and ergonomic design improves ergonomics and safety
  • Captured key lock with auto-latching mechanism ensures user safety, protection and device security
  • Auto-retracting connector cover to reduce connector damage
  • Integrated genuine Panasonic PCB and connector for trouble free service
  • Rear facing ports with integrated cable tie rail
  • Universal mounting interface including VESA 75 for optimum compatibility with new and existing infrastructure
  • Wedge Tilt 1.875" x 1.25" hole pattern

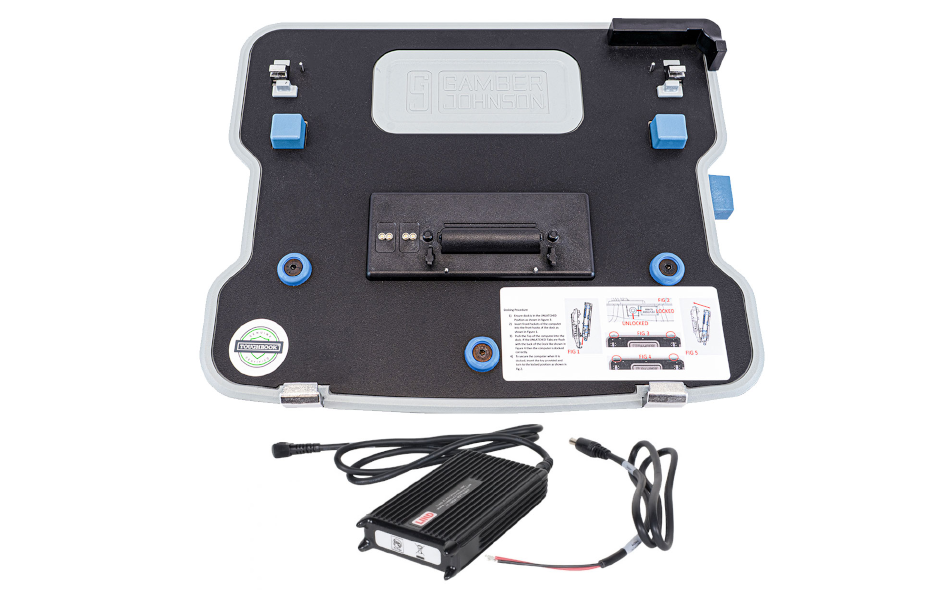

Kit Includes:

  • Panasonic Toughbook 40 Trimline Docking Station, Lite Port, No RF
  • Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic
  • Mounting Hardware
  • Installation Instructions

Purchase this product through a Reseller in your area.

  • Model:

    • TOUGHBOOK 40

  • Warranty:

    • 3-year Limited Lifetime Warranty

  • Device OEM:

    • Panasonic

  • Power Supply:

    : Yes - Power adapter included

  • Testing Specifications:

    • Panasonic Toughbook Certified - Pending
    • MIL-STD 810G; SAE J1455 tested and certified

  • Port Replicators:

    • Panasonic Certified Electronics
    • (2) Ethernet, RJ45
    • (1) Serial, 9-pin
    • (2) USB-C 3.2   (Max 1.5A@5V)
    • (1) USB-C 0.5Gbps  (500mA) front facing
    • (1) USB-A 10Gbps   (900mA)
    • (2) USB-A 0.5Gbps  (500mA)
    • Power input (15V)

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Laptop

  • Industry:

    • Public Safety
    • Utility

  • Port Replication:

    • Lite

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Docking Kit

  • Notes:

    Compatibility: Panasonic Toughbook 40 laptop
