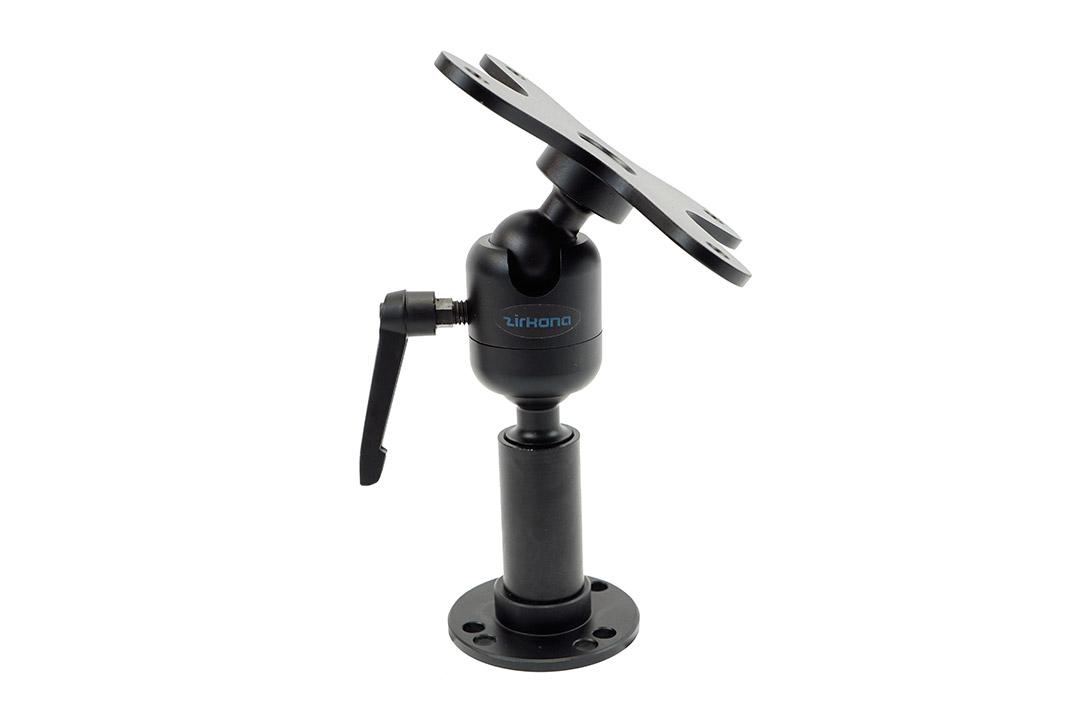

Zirkona Medium Joiner 2″ (50mm) Kit with Round VESA 75mm Plates

$134.00

Item Number: 7160-0779

Description

Add to Quote
Shipping — Approximate Lead Time Given at Order Entry
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet
View Full Line Catalog

  • Weight

    0.75 lbs. / 0.34 kg

  • Height

    4.88 in / 12.40 cm

  • Width

    6.50 in / 16.51 cm

  • Depth

    4.88 in / 12.40 cm

Features:

  • Anodized aluminum with black finish
  • Extension tube for extra height off mounting surface
  • All axes range of motion in X axis (left/right), Y axis (front/back) and Z axis (up/down)
  • Quick adjust handle for easy adjustment to position device

Purchase this product through a Reseller in your area.

  • Warranty:

    • Limited Lifetime Warranty

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Intermodal
    • Logistics
    • Public Safety
    • Retail
    • Utility

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Universal/Other
    • Zirkona

  • Sub Type 2:

    • Flat Surface Mount

  • Sub Type 3:

    • Adjustable Angle

  • Notes:

    • Recommend use of LOCTITE® 9460, 9461, or 9466 on all M20 size threads (See part number 7300-0510)
      • Loctite EA 9460
      • Loctite EA 9461
      • Loctite EA 9466
    • Maximum Weight Capacity:
      • Vibration environment - Joiner holds up to 6 lbs (2.8kg)
      • Static environment - Joiner holds up to 33 lbs (15kg)
      • Warning: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.
    • Mounting Plate Hole Patterns:
      • Round Plate - AMPS (4 hole rectangle shaped) and NEC (3 hole triangle shaped)
      • X- Shaped Mounting Plate - 75mm VESA hole pattern
    • Package Includes:
      • Medium Joiner
      • 50mm Extension
      • Thread Adapter
      • Round Mounting plate
      • VESA 75mm Mounting Plate
