Panasonic TOUGHBOOK G2/G3 Standard Full Dock Kit (No RF) with 120W Cigarette Plug Power Supply

$1,412.00

Item Number: 7170-1300-00

Description

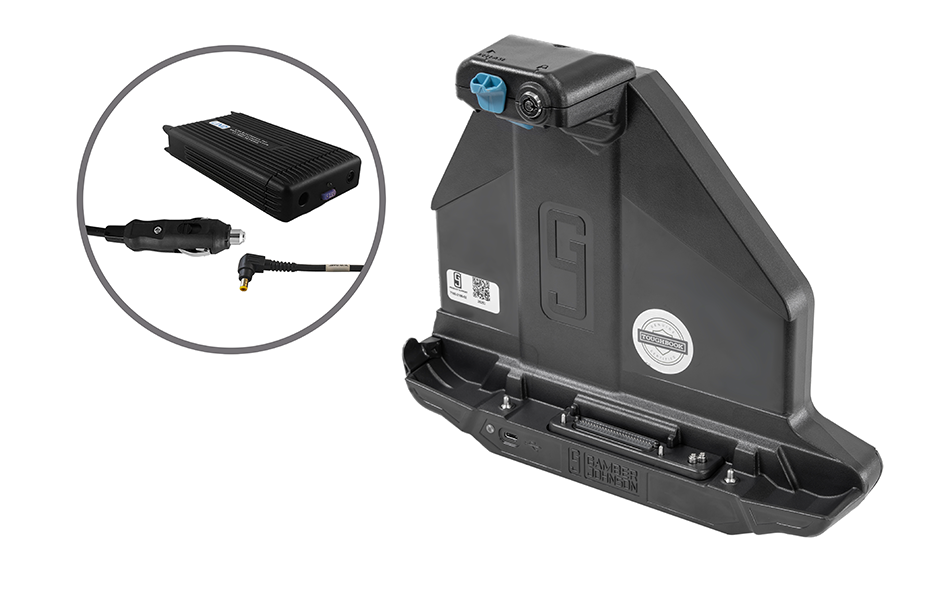

Put the connections crews use in one vehicle-ready place. This Standard Full kit pairs a TOUGHBOOK® G3/G2 dock with a 120W cigarette-plug adapter for power from a compatible vehicle outlet. Ethernet, USB and non-powered RS-232 serve installed equipment; front USB-C is right where a user can reach it. The dock accommodates compatible G2 field accessories, helping the workspace stay consistent through the device transition.

Add to Quote
Where To Buy Where to Buy
URL copied to clipboard
Product Sheet Installation Guide
View Full Line Catalog

  • Weight

    See Individual Components.

  • Height

    See Individual Components.

  • Width

    See Individual Components.

  • Depth

    See Individual Components.

Features:

  • Keep the workspace ready. A Standard dock puts the tablet at the center of the cab setup.
  • Connect at the front. USB-C access stays where the user can reach it, even with rear gear installed.
  • Give installed gear a home. Rear USB-C and USB-A join Gigabit Ethernet for vehicle peripherals.
  • Connect the equipment already in use. Full replication includes non-powered RS-232 and rear USB-C display support.
  • A focused no-RF option. Select this version when antenna pass-through is not part of the vehicle plan.
  • Dock and adapter together. Includes a 120W cigarette-plug adapter for compatible vehicle power.
  • Designed for configured G2 tablets. Compatible with G3 and with G2 setups using an extended battery, rear strap or bumper guards.
  • TOUGHBOOK Certified. Tested for shock, vibration and harsh conditions; backed by a three-year limited warranty.


Purchase this product through a Reseller in your area.

  • Model:

    • TOUGHBOOK G2
    • TOUGHBOOK G3

  • Device OEM:

    • Panasonic

  • Warranty:

    • Individual Item Warranty Applies

  • Power Supply:

    Includes Power Supply:

    • Power Adapter – Panasonic 120W – Auto Adapter (7300-0747)

  • Testing Specifications:

    • TOUGHBOOK certification in progress
    • MIL-STD 810H Shock/Vibration Tested
    • MIL-STD 810H Environmental Testing: Humidity, High/low temperature, (storage/operational)
    • Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms
    • RoHS, FCC, CE, UKCA
    • SAE J1455 Shock Crash Hazard Test

  • Port Replicators:

    • 1 x RJ45 Ethernet 1Gbps
    • 1 x USB-A 5Gbps, 1.5A
    • 1 x USB-C 5Gbps, 0.9A
    • 1 USB-C 5Gbps, 1.5A (With DP Alt Mode)
    • 1 x USB-C 480Mbps, 0.5A (Front)
    • 1 x RS-232 Serial
    • 1 x 15 VDC Power Input

  • Antenna Pass-through:

    • No RF

  • Device Type:

    • Tablet

  • Industry:

    • Fire/Rescue
    • Intermodal
    • Logistics
    • Material Handling
    • Public Safety
    • Utility

  • Port Replication:

    • Full

  • Brand:

    • Gamber-Johnson

  • Sub Type 1:

    • Docking Kit
